V3L-3296
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

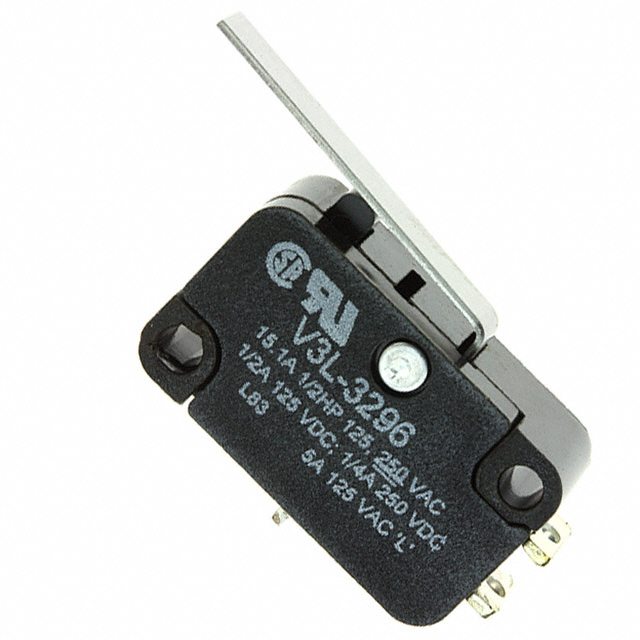

V3L-3296
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 15A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V3L-3296 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA, 15 A |
| Differential Travel | 0.81 mm |
| Differential Travel | 0.032 in |
| Mounting Type | Chassis Mount |
| Operating Force | 88 gf |
| Operating Position | 0.6 in |
| Operating Position | 15.2 mm |
| Overtravel | 2.3 mm |
| Overtravel | 0.09 in |
| Pretravel | 0.12 in |
| Pretravel | 3 mm |
| Release Force | 6 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
