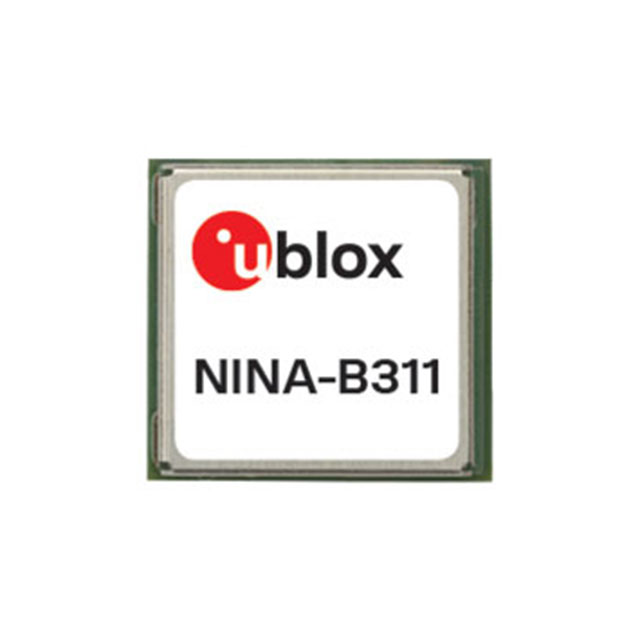

NINA-B311-00B

u-blox

RF TXRX MODULE BLUETOOTH SMD

Search across all available documentation for this part.

u-blox

RF TXRX MODULE BLUETOOTH SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Sensitivity	Mounting Type	Current - Receiving	Antenna Type	Memory Size	Serial Interfaces	Power - Output	Data Rate	Modulation	Current - Transmitting	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Type	For Use With/Related Products	Supplied Contents
u-blox NINA-B311-01B	55-SMD Module	2.4 GHz	3.6 V	1.7 V	nRF52840	-100 dBm	Surface Mount	4.8 mA	Antenna Not Included	1 MB 256 kB	ADC GPIO I2C I2S PWM SPI UART USB	10.5 dBm	2 Mbps	GFSK	14.1 mA	Bluetooth v5.0	85 °C	-40 °C	Bluetooth
u-blox NINA-B311-00B	55-SMD Module	2.4 GHz	3.6 V	1.7 V	nRF52840	-100 dBm	Surface Mount	4.8 mA	Antenna Not Included	1 MB 256 kB	GPIO UART	10.5 dBm	2 Mbps	GFSK	14.1 mA	Bluetooth v5.0	85 °C	-40 °C	Bluetooth
u-blox EVK-NINA-B311		2.4 GHz																		Bluetooth® 5.x (BLE) Transceiver	NINA-B311 nRF52840	Board(s) Cable(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.52
	Digi-Reel®	1	$ 8.52
	Tape & Reel (TR)	500	$ 8.00

General part information

Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
