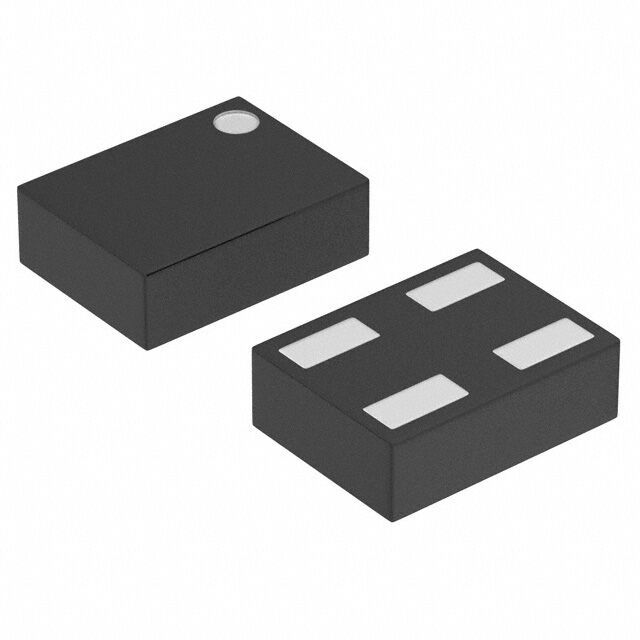

XC6224B0817R-G

Obsolete

Torex Semiconductor Ltd

IC REG LIN 0.8V 150MA USPN-4B02

Search across all available documentation for this part.

Obsolete

Torex Semiconductor Ltd

IC REG LIN 0.8V 150MA USPN-4B02

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output (Min/Fixed)	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Mounting Type	Supplier Device Package	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Output Type	PSRR	Protection Features	Number of Regulators	Current - Output	Package / Case	Voltage Dropout (Max) [Max]
Torex Semiconductor Ltd XC6224B0817R-G	0.8 V	Positive	85 °C	-40 °C	Enable	Surface Mount	USPN-4B02	77 µA	3.6 V	1.81 mOhm	70 dB	Over Current	1	150 mA	4-XFDFN
Torex Semiconductor Ltd XC6224A19BMR-G	1.95 V	Positive	85 °C	-40 °C	Enable	Surface Mount	SOT-25	77 µA	3.6 V	1.81 mOhm	70 dB	Over Current	1	150 mA	SC-74A SOT-753	0.43 V
Torex Semiconductor Ltd XC6224B12BMR-G	1.25 V	Positive	85 °C	-40 °C	Enable	Surface Mount	SOT-25	77 µA	3.6 V	1.81 mOhm	70 dB	Over Current	1	150 mA	SC-74A SOT-753	0.5 V
Torex Semiconductor Ltd XC6224A18BMR-G	1.85 V	Positive	85 °C	-40 °C	Enable	Surface Mount	SOT-25	77 µA	3.6 V	1.81 mOhm	70 dB	Over Current	1	150 mA	SC-74A SOT-753	0.43 V
Torex Semiconductor Ltd XC6224B13BNR-G	1.35 V	Positive	85 °C	-40 °C	Enable	Surface Mount	SSOT-24	77 µA	3.6 V	1.81 mOhm	70 dB	Over Current	1	150 mA	SC-82	0.5 V
Torex Semiconductor Ltd XC6224B121MR-G	1.2 V	Positive	85 °C	-40 °C	Enable	Surface Mount	SOT-25	77 µA	3.6 V	1.81 mOhm	70 dB	Over Current	1	150 mA	SC-74A SOT-753	0.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA USPN-4B02

Technical documentation and resources

No documents available
