35RAPC2BHN3

Active

Switchcraft Inc.

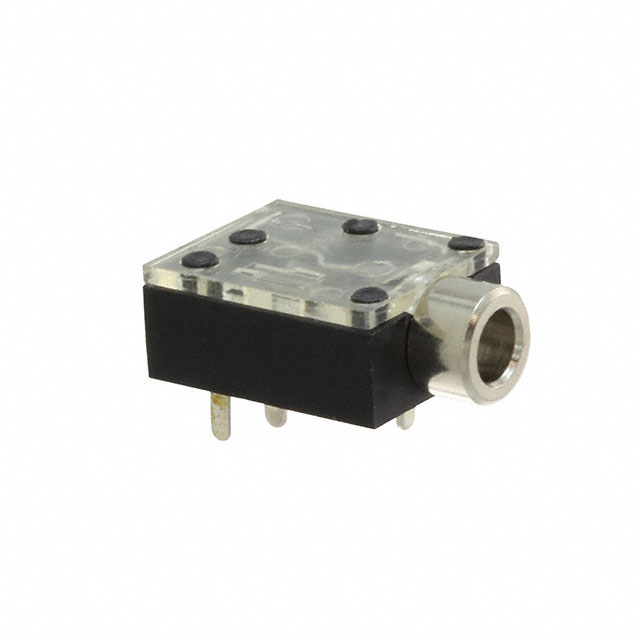

CONN JACK STEREO 3.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35RAPC2BHN3

Active

Switchcraft Inc.

CONN JACK STEREO 3.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	35RAPC2BHN3

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Silver, Black
Body Material	Brass
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Gender	Female
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder

35RAPC Series

Phone Connectors 3.5MM STEREO HORIZ.N

Part	Internal Switch(s)	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Contact Material - Plating [custom]	Body Material	Contact Material	Termination	Mounting Type	Body Color	Gender	Housing Material	Shielding	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Signal Lines	Connector Type	Number of Positions/Contacts	Features	Thread Size	Includes	Number of Positions/Contacts
Switchcraft Inc. 35RAPC4BVN4	Two Switches	0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Through Hole Right Angle	Black Silver	Female	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	0.142 in	3.6 mm	3	5	Stereo	Phone Jack
Switchcraft Inc. 35RAPC2AH3	Single Switch	0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Panel Mount Right Angle Through Hole	Black Silver	Female	Polybutylene Terephthalate (PBT)	Unshielded	0.142 in	3.6 mm			Mono	Phone Jack	2 Conductors 3 Conductors	Mounting Hardware Thread Lock	M6	Connector Nut Washer
Switchcraft Inc. 35RAPC2BHN2		0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Through Hole Right Angle	Black Silver	Female	Polybutylene Terephthalate (PBT)	Unshielded	0.142 in	3.6 mm	3	3	Stereo	Phone Jack
Switchcraft Inc. 35RAPC2BHN3		0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Through Hole Right Angle	Black Silver	Female	Polybutylene Terephthalate (PBT)	Unshielded	0.142 in	3.6 mm	3	3	Stereo	Phone Jack
Switchcraft Inc. 35RAPC2BVN4		0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Through Hole Right Angle	Black Silver	Female	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	0.142 in	3.6 mm	3	3	Stereo	Phone Jack
Switchcraft Inc. 35RAPC4BV4	Two Switches	0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Panel Mount Right Angle Through Hole	Black Silver	Female	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	0.142 in	3.6 mm	3	5	Stereo	Phone Jack		Mounting Hardware Thread Lock		Connector Nut Washer
Switchcraft Inc. 35RAPC2BV4		0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Panel Mount Right Angle Through Hole	Black Silver	Female	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	0.142 in	3.6 mm	3	3	Stereo	Phone Jack		Mounting Hardware Thread Lock		1 Connector 1 Nut
Switchcraft Inc. 35RAPC7JS	Two Switches	0.141 "	0.125 "	3.5 mm	Silver	Copper Alloy	Copper Alloy	Solder	Through Hole Right Angle	Black Silver	Female	Liquid Crystal Polymer (LCP)	Shielded	0.142 in	3.6 mm			Stereo	Dual Phone Jack	8 Positions				2 Sets of 3 Conductors
Switchcraft Inc. 35RAPC2BH3		0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Panel Mount Right Angle Through Hole	Black Silver	Female	Polybutylene Terephthalate (PBT)	Unshielded	0.142 in	3.6 mm	3	3	Stereo	Phone Jack		Mounting Hardware Thread Lock		Connector Nut Washer
Switchcraft Inc. 35RAPC2AHN3	Single Switch	0.141 "	0.125 "	3.5 mm	Silver	Brass	Copper Alloy	Solder	Through Hole Right Angle	Black Silver	Female	Polybutylene Terephthalate (PBT)	Unshielded	0.142 in	3.6 mm			Mono	Phone Jack	2 Conductors 3 Conductors
