VS-1N1183RA

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 50V 40A DO203AB

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 50V 40A DO203AB

Technical Specifications

Parameters and characteristics for this part

Specification	VS-1N1183RA

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	2.5 mA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C

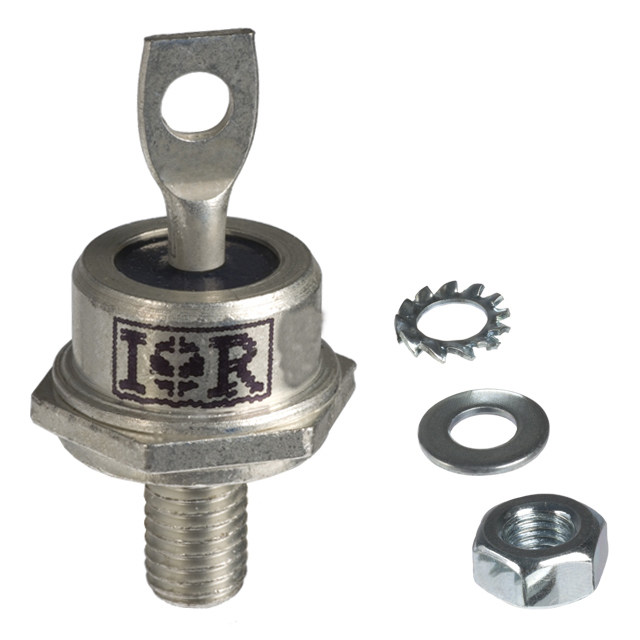

Package / Case	DO-203AB, DO-5, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-5
Supplier Device Package	DO-203AB
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	50 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Current - Average Rectified (Io)	Package / Case	Speed	Speed	Supplier Device Package	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]
Vishay General Semiconductor - Diodes Division VS-1N1183RA	40 A	DO-203AB DO-5 Stud	Standard Recovery >500ns	200 mA	DO-5	DO-203AB	1.3 V	Reverse Polarity Standard	200 C	-65 C	2.5 mA	Chassis Stud Mount	50 V
Vishay General Semiconductor - Diodes Division VS-1N1183R	35 A	DO-203AB DO-5 Stud	Standard Recovery >500ns	200 mA	DO-5	DO-203AB	1.7 V	Reverse Polarity Standard	190 °C	-65 C	10 mA	Chassis Stud Mount	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 50 V 40A Chassis, Stud Mount DO-203AB (DO-5)
