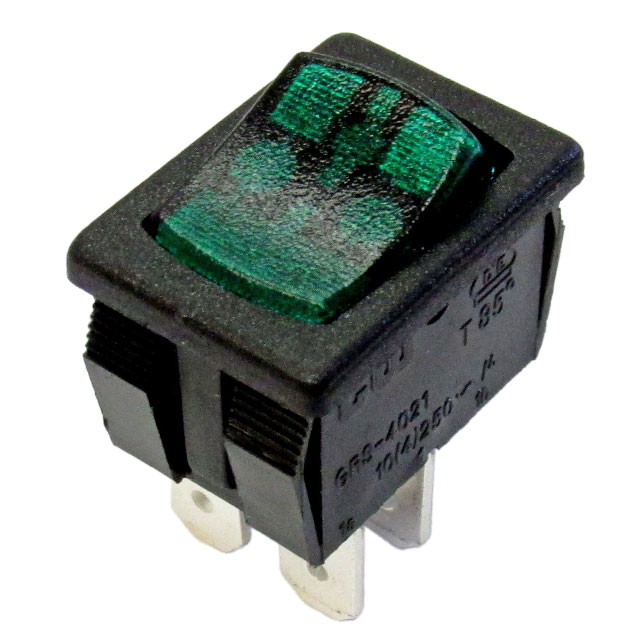

GRL-4021-0011

Active

CW Industries

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRL-4021-0011

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Circuit	DPST
Color - Actuator/Cap	Green
Current Rating (Amps)	16 A
Electrical Life	25000 Steps
Illumination Type, Color	Green, Neon
Illumination Voltage (Nominal)	125 VAC
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Color - Actuator/Cap	Mechanical Life	Illumination Voltage (Nominal)	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Actuator Type	Circuit	Illumination Type, Color	Termination Style	Actuator Marking	Electrical Life	Features
CW Industries GRL-4021-0011	Green	25000 Steps	125 VAC	125 V	12.9 mm	Rectangular	19.2 mm	On-Off	-20 C	105 ░C	16 A	Panel Mount Snap-In	Concave (Curved) - Illuminated	DPST	Green Neon	Quick Connect - 0.187" (4.7mm)	No Marking	25000 Steps
CW Industries GRL-4021-0001	Red	25000 Steps	125 VAC	125 V	12.9 mm	Rectangular	19.2 mm	On-Off	-20 C	105 ░C	8 A	Panel Mount Snap-In	Concave (Curved) - Illuminated	DPST	Neon Red	Quick Connect - 0.187" (4.7mm)	No Marking	25000 Steps	Terminal Barriers
CW Industries GRL-4021-0012	Red	25000 Steps	125 VAC	250 V	12.9 mm	Rectangular	19.2 mm	On-Off	-20 C	105 ░C	16 A	Panel Mount Snap-In	Concave (Curved) - Illuminated	DPST	Neon Red	Quick Connect - 0.187" (4.7mm)	No Marking	25000 Steps	Terminal Barriers
CW Industries GRL-4021-0000	Red	25000 Steps	125 VAC	125 V	12.9 mm	Rectangular	19.2 mm	On-Off	-20 C	105 ░C	13 A	Panel Mount Snap-In	Concave (Curved) - Illuminated	DPST	Neon Red	Quick Connect - 0.187" (4.7mm)	No Marking	25000 Steps	Terminal Barriers

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.89

General part information

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
