TG-A1660-325-325-1.0

Obsolete

t-Global Technology

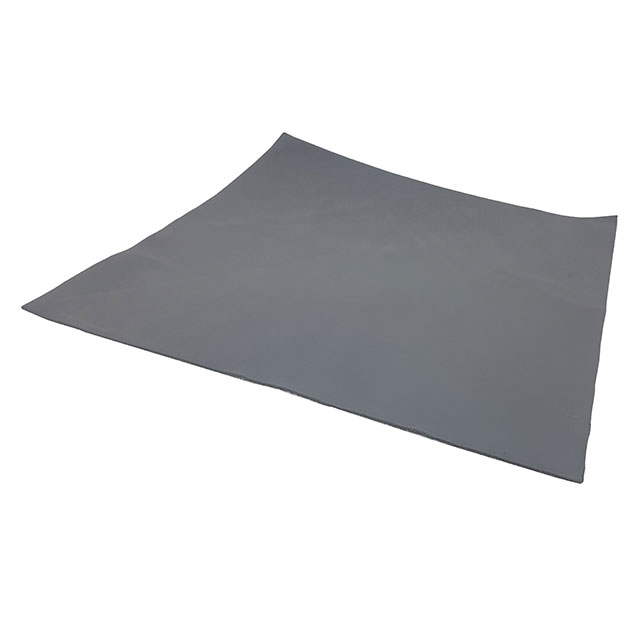

THERM PAD 325X325MM GRAY

Search across all available documentation for this part.

Obsolete

t-Global Technology

THERM PAD 325X325MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Type	Thermal Conductivity	Shelf Life	Color	Usage	Thickness	Thickness	Outline [x]	Outline [y]	Material	Shape
t-Global Technology TG-A1660-100-100-2.0	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.079 in	2 mm	100 mm	100 mm	Silicone	Square
t-Global Technology TG-A1660-20-20-2.0	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.079 in	2 mm	20 mm	20 mm	Silicone	Square
t-Global Technology TG-A1660-15-15-2.0	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.079 in	2 mm	15 mm	15 mm	Silicone	Square
t-Global Technology TG-A1660-15-15-1.5	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.0591 "	1.5 mm	15 mm	15 mm	Silicone	Square
t-Global Technology TG-A1660-325-325-1.0	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.0394 in	1 mm	325 mm	325 mm	Silicone	Square
t-Global Technology TG-A1660-160-160-0.8	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.031 in	0.787 mm	160 mm	160 mm	Silicone	Square
t-Global Technology TG-A1660-100-100-1.5	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.0591 "	1.5 mm	100 mm	100 mm	Silicone	Square
t-Global Technology TG-A1660-10-10-2.0	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.079 in	2 mm	10 mm	10 mm	Silicone	Square
t-Global Technology TG-A1660-5-5-0.5	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.0197 in	0.5 mm	5 mm	5 mm	Silicone	Square
t-Global Technology TG-A1660-15-15-0.5	Gap Filler Pad Sheet	16.6 W/m-K	24 Months	Gray	Multi	0.0197 in	0.5 mm	15 mm	15 mm	Silicone	Square
