IS32LT3128-ZLA3-TR
ActiveLumissil Microsystems
IC LED DRV LIN PWM 20ETSSOP
Deep-Dive with AI
Search across all available documentation for this part.
IS32LT3128-ZLA3-TR
ActiveLumissil Microsystems
IC LED DRV LIN PWM 20ETSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IS32LT3128-ZLA3-TR |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 150 mA |
| Dimming | PWM |
| Grade | Automotive |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case [custom] | 4.4 mm, 0.173 in |
| Package / Case [custom] | Exposed Pad |
| Package / Case [custom] | 20-TSSOP |
| Qualification | AEC-Q100 |

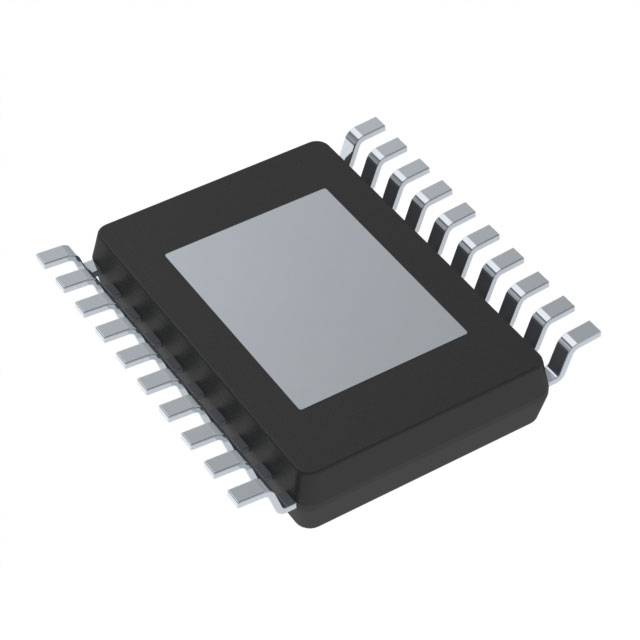

| Supplier Device Package | 20-eTSSOP |
| Type | Linear |
| Voltage - Supply (Max) [Max] | 42 V |
| Voltage - Supply (Min) [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.95 | |
| 10 | $ 1.87 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.27 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.93 | |||
| Digi-Reel® | 1 | $ 2.95 | ||
| 10 | $ 1.87 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.27 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.93 | |||
| Tape & Reel (TR) | 2500 | $ 0.85 | ||
Description
General part information
IS32LT3128 Series
LED Driver IC 3 Output Linear PWM Dimming 150mA 20-eTSSOP
Documents
Technical documentation and resources
No documents available
