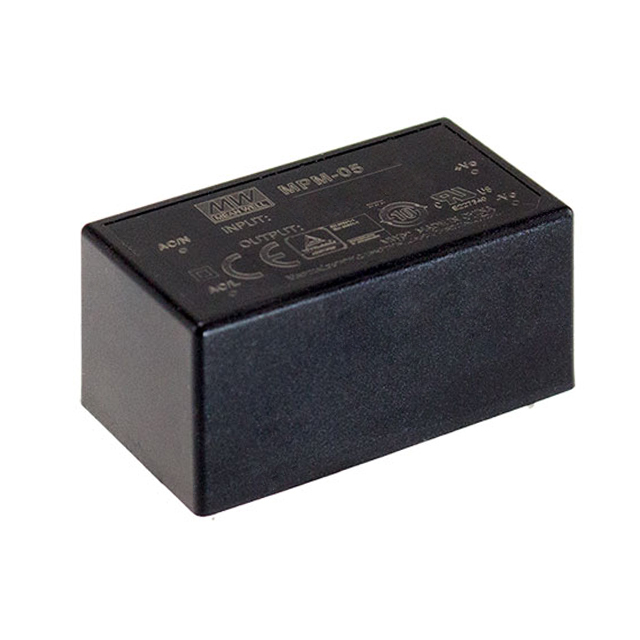

MPM-05-3.3
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 3.3V 4.1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPM-05-3.3
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 3.3V 4.1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM-05-3.3 |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 74 % |
| Features | Universal Input |
| Line Regulation | 0.3 % |
| Load Regulation | 0.5 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 4.1 W |
| Size / Dimension [x] | 1.8 " |
| Size / Dimension [x] | 45.7 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 21.5 mm |
| Size / Dimension [z] | 0.85 " |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 9.82 | |
| 5 | $ 9.25 | |||
| 10 | $ 9.02 | |||
| 25 | $ 8.72 | |||
Description
General part information
MPM-05 Series
Enclosed AC DC Converters 1 Output 3.3V 1.25A 80 ~ 264 VAC Input
