0026192031

Active

Molex

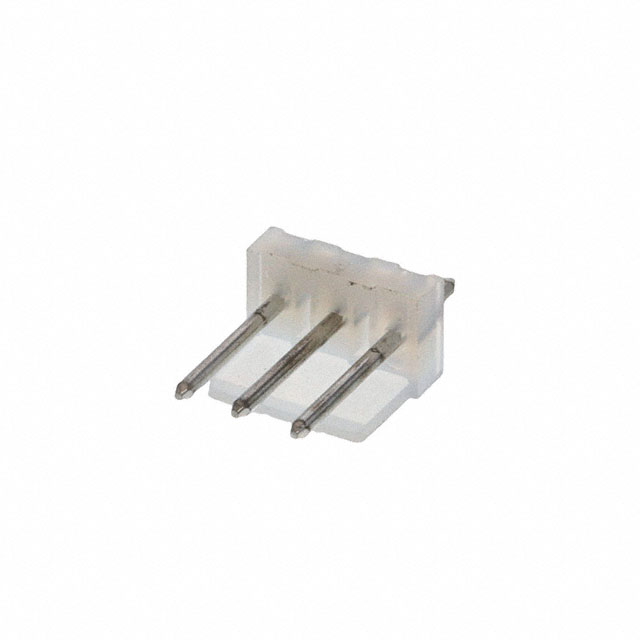

CONN HEADER VERT 3POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

0026192031

Active

Molex

CONN HEADER VERT 3POS 3.96MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026192031

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.359 in
Insulation Height	9.12 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.75 in
Overall Contact Length	19.05 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

002619 Series

Part	Contact Material	Applications	Mounting Type	Number of Positions Loaded	Contact Shape	Number of Positions	Insulation Material	Connector Type	Fastening Type	Insulation Color	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Style	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Rows	Shrouding	Insulation Height	Insulation Height
Molex 0026192061	Brass	Automotive General Purpose Industrial Medical Telecommunications	Through Hole	All	Circular	6	Nylon Polyamide (PA)	Header	Push-Pull	Natural	Solder	2.54 çm	100 çin	Male Pin	UL94 V-2	4.45 mm	0.175 in	11.43 mm	0.45 in	0.75 in	19.05 mm	Board to Board Cable	0.156 in	3.96 mm	Tin	1	Shrouded - 1 Wall	0.359 in	9.12 mm
Molex 0026192181	Brass	Automotive General Purpose Industrial Medical Telecommunications	Through Hole	All	Circular	18	Nylon Polyamide (PA)	Header	Push-Pull	Natural	Solder	2.54 çm	100 çin	Male Pin	UL94 V-2	4.45 mm	0.175 in	11.43 mm	0.45 in	0.75 in	19.05 mm	Board to Board Cable	0.156 in	3.96 mm	Tin	1	Shrouded - 1 Wall	0.359 in	9.12 mm
Molex 0026192031	Brass	Automotive General Purpose Industrial Medical Telecommunications	Through Hole	All	Circular		Nylon Polyamide (PA)	Header	Push-Pull	Natural	Solder	2.54 çm	100 çin	Male Pin	UL94 V-2	4.45 mm	0.175 in	11.43 mm	0.45 in	0.75 in	19.05 mm	Board to Board Cable	0.156 in	3.96 mm	Tin	1	Shrouded - 1 Wall	0.359 in	9.12 mm
Molex 0026192101	Brass	Automotive General Purpose Industrial Medical Telecommunications	Through Hole	All	Circular	10	Nylon Polyamide (PA)	Header	Push-Pull	Natural	Solder	2.54 çm	100 çin	Male Pin	UL94 V-2	4.45 mm	0.175 in	11.43 mm	0.45 in	0.75 in	19.05 mm	Board to Board Cable	0.156 in	3.96 mm	Tin	1	Shrouded - 1 Wall	0.359 in	9.12 mm
Molex 0026192071	Brass	Automotive General Purpose Industrial Medical Telecommunications	Through Hole	All	Circular	7	Nylon Polyamide (PA)	Header	Push-Pull	Natural	Solder	2.54 çm	100 çin	Male Pin	UL94 V-2	4.45 mm	0.175 in	11.43 mm	0.45 in	0.75 in	19.05 mm	Board to Board Cable	0.156 in	3.96 mm	Tin	1	Shrouded - 1 Wall	0.359 in	9.12 mm
Molex 0026192051	Brass	Automotive General Purpose Industrial Medical Telecommunications	Through Hole	All	Circular		Nylon Polyamide (PA)	Header	Push-Pull	Natural	Solder	2.54 çm	100 çin	Male Pin	UL94 V-2	4.45 mm	0.175 in	11.43 mm	0.45 in	0.75 in	19.05 mm	Board to Board Cable	0.156 in	3.96 mm	Tin	1	Shrouded - 1 Wall	0.359 in	9.12 mm
Molex 0026192111	Brass	Automotive General Purpose Industrial Medical Telecommunications	Through Hole	All	Circular	11	Nylon Polyamide (PA)	Header	Push-Pull	Natural	Solder	2.54 çm	100 çin	Male Pin	UL94 V-2	4.45 mm	0.175 in	11.43 mm	0.45 in	0.75 in	19.05 mm	Board to Board Cable	0.156 in	3.96 mm	Tin	1	Shrouded - 1 Wall	0.359 in	9.12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.45
		10	$ 0.38
		100	$ 0.30
		1000	$ 0.25

Description

General part information

002619 Series

Connector Header Through Hole 3 position 0.156" (3.96mm)
