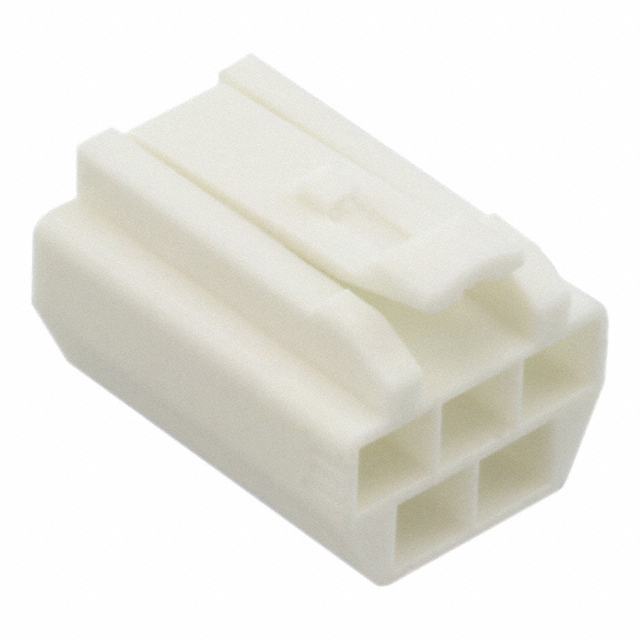

DF62B-5S-2.2C

Active

Hirose Electric USA, Inc.

CONN SOCKET HSG 5POS 2.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF62B-5S-2.2C Spec DF62 Series Catalog +1

DF62B-5S-2.2C

Active

Hirose Electric USA, Inc.

CONN SOCKET HSG 5POS 2.20MM

Deep-Dive with AI

DocumentsDF62B-5S-2.2C Spec DF62 Series Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF62B-5S-2.2C

Color	White
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

DF62B Series

Part	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Note	Number of Rows	Contact Type	Fastening Type	Connector Type	Color	Number of Positions	Mounting Type	Contact Termination	Row Spacing	Row Spacing
Hirose Electric USA, Inc. DF62B-2S-2.2C(18)	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	1	Female Socket	Latch Lock	Socket	Red	2	Free Hanging (In-Line)	Crimp
Hirose Electric USA, Inc. DF62B-24S-2.2C	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	5	Female Socket	Latch Lock	Socket	White	24	Free Hanging (In-Line)	Crimp	2 mm	0.079 in
Hirose Electric USA, Inc. DF62B-6S-2.2C(18)	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	2	Female Socket	Latch Lock	Socket	Red	6	Free Hanging (In-Line)	Crimp	2 mm	0.079 in
Hirose Electric USA, Inc. DF62B-5S-2.2C	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	2	Female Socket	Latch Lock	Socket	White		Free Hanging (In-Line)	Crimp	2 mm	0.079 in
Hirose Electric USA, Inc. DF62B-24S-2.2C(11)	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	5	Female Socket	Latch Lock	Socket	Black	24	Free Hanging (In-Line)	Crimp	2 mm	0.079 in
Hirose Electric USA, Inc. DF62B-5EP-2.2C	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	2	Male Pin	Latch Holder	Plug	Black		Free Hanging (In-Line)	Crimp	2 mm	0.079 in
Hirose Electric USA, Inc. DF62B-3EP-2.2C	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	2	Male Pin	Latch Holder	Plug	Black		Free Hanging (In-Line)	Crimp	2 mm	0.079 in
Hirose Electric USA, Inc. DF62B-13S-2.2C	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included		Female Socket	Latch Lock	Socket	White	13	Free Hanging (In-Line)	Crimp	2 mm	0.079 in
Hirose Electric USA, Inc. DF62B-3S-2.2C(11)	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	2	Female Socket	Latch Lock	Socket	Black		Free Hanging (In-Line)	Crimp	2 mm	0.079 in
Hirose Electric USA, Inc. DF62B-6EP-2.2C(18)	0.087 in	2.2 mm	-35 °C	105 ░C	Polybutylene Terephthalate (PBT)	Contacts Not Included	2	Male Pin	Latch Holder	Plug	Red	6	Free Hanging (In-Line)	Crimp	2 mm	0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.64
		10	$ 0.49
		25	$ 0.44
		50	$ 0.41
		100	$ 0.38
		250	$ 0.34
		500	$ 0.31
		1000	$ 0.29
		2500	$ 0.26

Description

General part information

DF62B Series

5 Rectangular Connectors - Housings Socket White 0.087" (2.20mm)

Documents

Technical documentation and resources

DF62B-5S-2.2C Spec

Datasheet

DF62 Series Catalog

Datasheet
