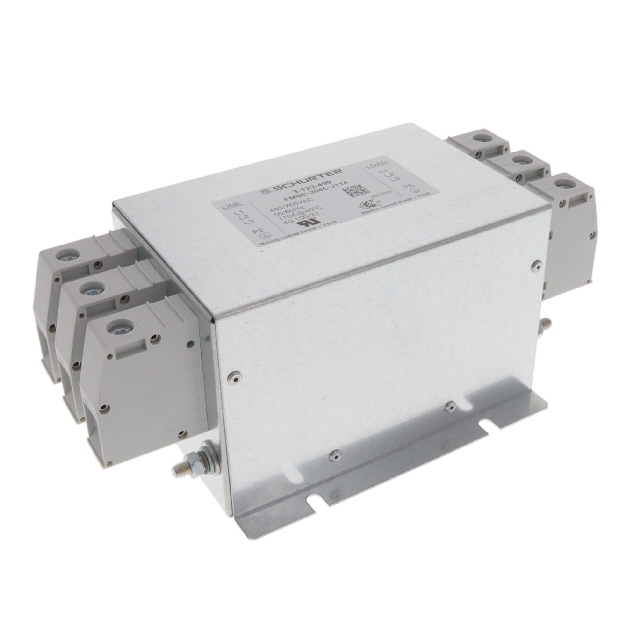

FMBC-394C-J114

Active

SCHURTER Inc.

LINE FILTER 760VAC 110A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMBC-394C-J114

Active

SCHURTER Inc.

LINE FILTER 760VAC 110A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FMBC-394C-J114

Applications	General Purpose
Approval Agency	UL, ENEC, VDE, cURus
Configuration	Two Stage
Current	110 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Termination Style	Terminal Block
Voltage - Rated AC	760 V

FMBC Series

Part	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current	Filter Type	Voltage - Rated AC	Applications	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance [custom]	Inductance [custom]	Operating Temperature [custom]	Inductance	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]
SCHURTER Inc. FMBC-345B-3614	Terminal Block	Chassis Mount	100 °C	-40 °C	cURus ENEC UL VDE	25 A	Three Phase (Delta)	760 V	General Purpose	Two Stage	60 Hz	50 Hz
SCHURTER Inc. FMBC-394D-J814	Terminal Block	Chassis Mount	100 °C	-40 °C	cURus ENEC UL VDE	180 A	Three Phase (Delta)	760 V	General Purpose	Two Stage	60 Hz	50 Hz
SCHURTER Inc. FMBC-0967-1010	Terminal Block	Chassis Mount			cURus ENEC VDE	10 A	Three Phase (Delta)	480 V	Inverters Power Drive Systems	Two Stage	60 Hz	50 Hz	1.5 mH	3 mH	-25 °C 100 °C
SCHURTER Inc. FMBC-345A-1612	Terminal Block	Chassis Mount	100 °C	-40 °C	cURus ENEC UL VDE	16 A	Three Phase (Delta)	520 V	General Purpose	Two Stage	60 Hz	50 Hz
SCHURTER Inc. FMBC-395B-6412	Terminal Block	Chassis Mount	100 °C	-40 °C	cURus ENEC UL VDE	64 A	Three Phase (Delta)	520 V	General Purpose	Two Stage	60 Hz	50 Hz
SCHURTER Inc. FMBC-0932-2510L	Terminal Block	Chassis Mount			cURus ENEC VDE	25 A	Three Phase (Delta)	480 V	General Purpose	Two Stage	60 Hz	50 Hz			-25 °C 100 °C	2.4 mH
SCHURTER Inc. FMBC-394D-K314	Terminal Block	Chassis Mount	100 °C	-40 °C	cURus ENEC UL VDE	230 A	Three Phase (Delta)	760 V	General Purpose	Two Stage	60 Hz	50 Hz
SCHURTER Inc. FMBC-A91R-4212	Terminal Block	Chassis Mount			cURus ENEC VDE	42 A	Three Phase (Delta)		General Purpose	Two Stage	60 Hz	50 Hz	10 µH	1.3 mH	-25 °C 100 °C		520 V	480 V
SCHURTER Inc. FMBC-394C-J114	Terminal Block	Chassis Mount	100 °C	-40 °C	cURus ENEC UL VDE	110 A	Three Phase (Delta)	760 V	General Purpose	Two Stage	60 Hz	50 Hz
SCHURTER Inc. FMBC-345A-1614	Terminal Block	Chassis Mount	100 °C	-40 °C	cURus ENEC UL VDE	16 A	Three Phase (Delta)	760 V	General Purpose	Two Stage	60 Hz	50 Hz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 272.14
		10	$ 262.75
		25	$ 253.37

Description

General part information

FMBC Series

Three Phase (Delta) EMC/EMI Line Filter 110 A 760V 50/60Hz Two Stage Terminal Block
