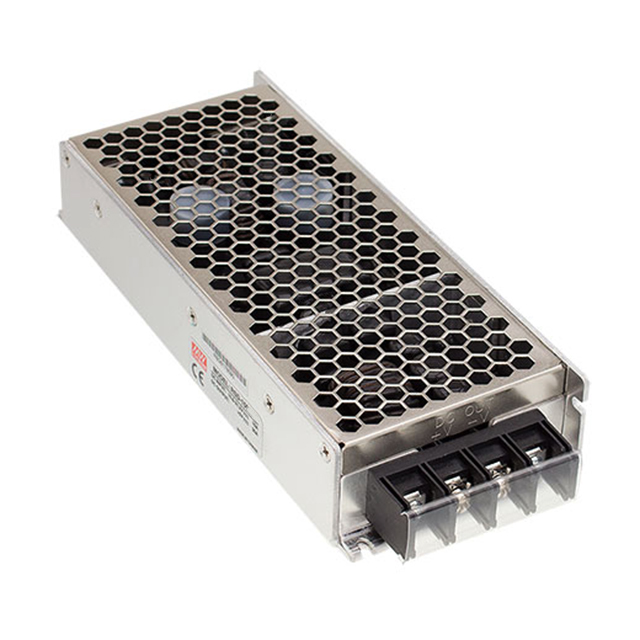

RSD-150B-24
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 24V 151W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSD-150B-24
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 24V 151W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSD-150B-24 |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 6.3 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 151 W |
| Size / Dimension [x] | 7.44 " |
| Size / Dimension [x] | 189 mm |
| Size / Dimension [y] | 77 mm |
| Size / Dimension [y] | 3.03 in |
| Size / Dimension [z] | 36 mm |
| Size / Dimension [z] | 1.42 in |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 31.2 V |
| Voltage - Input (Min) [Min] | 16.8 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 100.33 | |
| 5 | $ 94.58 | |||
| 10 | $ 92.21 | |||
| 25 | $ 89.17 | |||
Description
General part information
RSD-150B Series
Enclosed DC DC Converter 1 Output 24V 6.3A 31.2V Input
