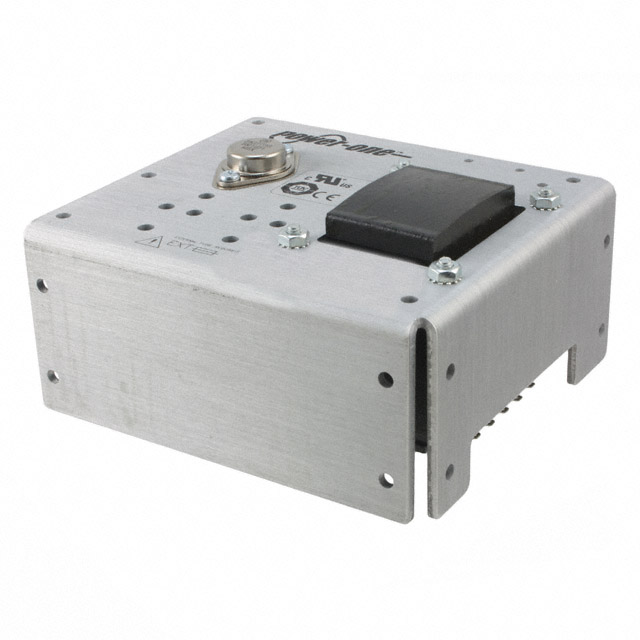

HC5-6/OVP-AG

Active

EOS Power India Private Ltd

AC/DC CONVERTER 5V 30W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 5V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	HC5-6/OVP-AG

Applications	ITE (Commercial)
Approval Agency	UL, CSA, CE
Current - Output 1	6 A
Efficiency	45 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	30 W
Size / Dimension [x]	5.62 in
Size / Dimension [x]	142.8 mm
Size / Dimension [y]	123.7 mm
Size / Dimension [y]	4.87 in
Size / Dimension [z]	74.9 mm
Size / Dimension [z]	2.95 "
Standard Number	60950-1, 62368-1
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	5 V

Part	Standard Number	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Applications	Power (Watts)	Voltage - Output 1	Type	Mounting Type	Voltage - Isolation	Voltage - Input	Number of Outputs	Features	Current - Output 1	Approval Agency
EOS Power India Private Ltd HC5-6/OVP-AG	60950-1 62368-1	45 %	5.62 in	123.7 mm	142.8 mm	4.87 in	74.9 mm	2.95 "	ITE (Commercial)	30 W	5 V	Linear	Chassis Mount	4.242 kV	100 VAC 120 VAC 220 VAC 230 VAC 240 VAC	1	Adjustable Output Remote Sense	6 A	CE CSA UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 1 Output 5V 100, 120, 220, 230, 240 VAC Input
