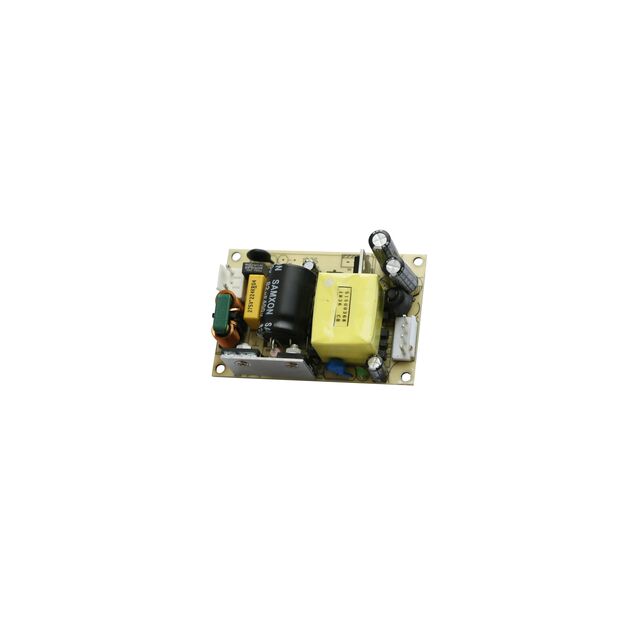

AMEOF65-12SJZ

Active

aimtec

AC/DC POWER SUPPLY SINGLE-OUT 12V 5.42A 65W 6-PIN BOX

Search across all available documentation for this part.

Active

aimtec

AC/DC POWER SUPPLY SINGLE-OUT 12V 5.42A 65W 6-PIN BOX

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Isolation	Type	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Efficiency	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Current - Output 1	Standard Number	Power (Watts)
aimtec AMEOF65-24SJZ	ITE (Commercial)	70 °C	-25 °C	1	3000 V	Open Frame	24 V	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	87 %	Universal Input	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	CE	2.71 A
aimtec AMEOF65-15SJZ	ITE (Commercial)	70 °C	-25 °C	1	3000 V	Open Frame	15 V	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	85 %	Universal Input	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	CE	4.34 A
aimtec AMEOF65-12SJZ	ITE (Commercial)	70 °C	-25 °C	1	3000 V	Open Frame	12 V	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	85 %	Universal Input	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	CE	5.42 A
aimtec AMEOF65-9SJZ	ITE (Commercial)	70 °C	-25 °C	1	3000 V	Open Frame	9 V	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	83 %	Universal Input	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	CE	6.6 A
aimtec AMEOF65-48SJZ	ITE (Commercial)	70 °C	-25 °C	1	3000 V	Open Frame	48 V	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	87 %	Universal Input	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	CE	1.36 A
aimtec AMEOF65-5SJZ	ITE (Commercial)	70 °C	-25 °C	1	3000 V	Open Frame	5 V	264 VAC 370 VDC	85 VAC 100 V	Chassis Mount	80 %	Universal Input	2 in	3 "	1.18 in	50.8 mm	76.2 mm	30 mm	CE	10 A	62368-1	50 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 100 ~ 370 VDC Input
