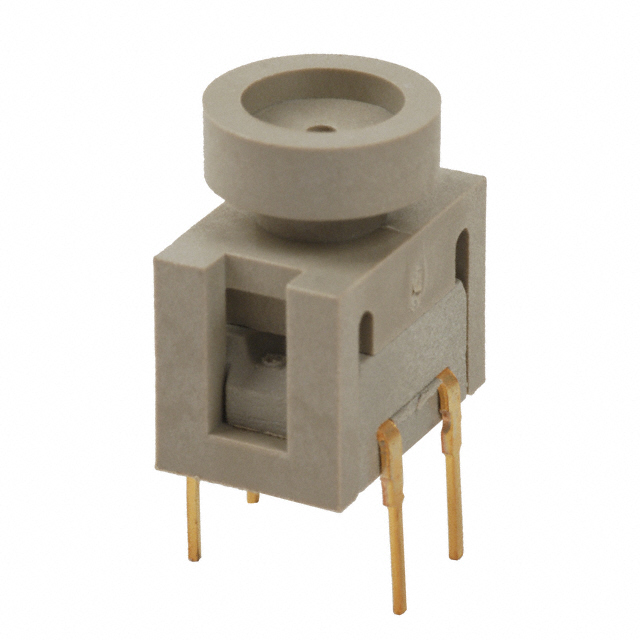

26PCFFS2G

Active

Honeywell Sensing and Productivity Solutions

SENSOR 100PSIC 0.1V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 100PSIC 0.1V

Technical Specifications

Parameters and characteristics for this part

Part	Features	Port Style	Pressure Type	Termination Style	Maximum Pressure	Maximum Pressure	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output [Min]	Output [Max]	Accuracy	Applications	Operating Pressure	Operating Pressure	Package / Case
Honeywell Sensing and Productivity Solutions 26PCFFS2G	Temperature Compensated	No Port	Compound	PC Pin	1378.95 kPa	200 PSI	Wheatstone Bridge	Through Hole	85 °C	-40 °C	2.5 V	16 V	0 mV	100 mV	0.6 %	Board Mount	100 PSI	689.48 kPa	4-SIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 63.44

General part information

Pressure Sensor ±100PSI (±689.48kPa) Compound 0 mV ~ 100 mV (10V) 4-SIP Module
