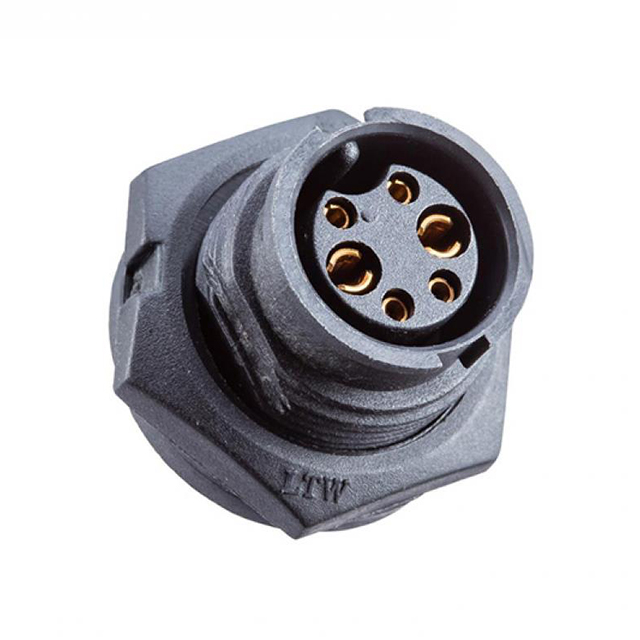

ABD-06PMFS-LC7001

Active

Amphenol LTW

STANDARD STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

STANDARD STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ABD-06PMFS-LC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Nickel
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Material Flammability Rating	Orientation	Voltage Rating	Shell Size - Insert	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Ingress Protection	Mounting Feature	Insert Material	Connector Type	Number of Positions	Shell Finish	Contact Finish - Mating	Contact Material	Color	Primary Material	Current Rating (Amps)
Amphenol LTW ABD-06PMFS-LC7001	UL94 V-0	Keyed	300 VDC	B	Unshielded	-40 °C	105 ░C	Bayonet Lock	IP67 - Dust Tight Waterproof	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled	Receptacle Female Sockets	6	Nickel	Gold	Copper Alloy	Black	Plastic	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
