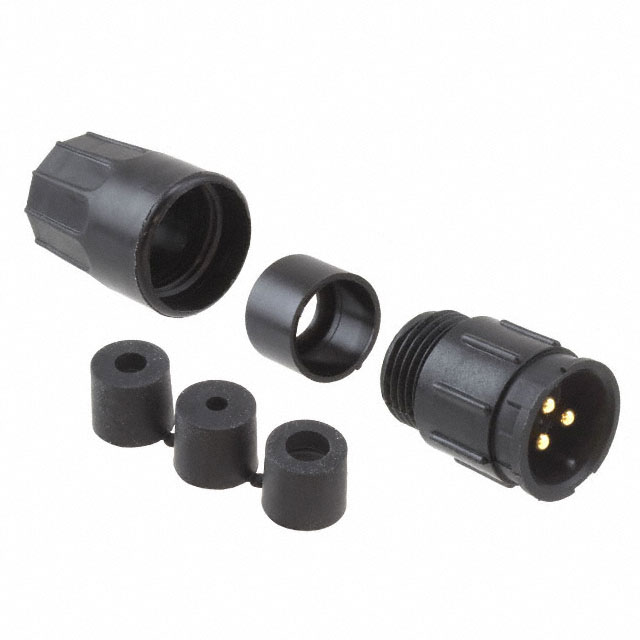

5182-3PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Cable Assemblies/Connector Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5182-3PG-3DC

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

5182-3PG Series

Part	Contact Material	Orientation	Fastening Type	Ingress Protection	Voltage Rating	Backshell Material, Plating	Contact Finish - Mating	Color	Primary Material	Mounting Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Features	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5182-3PG-3DC	Brass	Keyed	Bayonet Lock	Weathertight	600 V	Nylon Polyamide (PA)	Gold	Black	Plastic	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	Male Pins Receptacle	Backshell
Conxall/Switchcraft 5182-3PG-524	Brass	Keyed	Bayonet Lock	Weathertight	600 V	Nylon Polyamide (PA)	Gold	Black	Plastic	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	Male Pins Receptacle	Backshell Cable Clamp	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 5182-3PG-521	Brass	Keyed	Bayonet Lock	Weathertight	600 V	Nylon Polyamide (PA)	Gold	Black	Plastic	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	Male Pins Receptacle	Backshell Cable Clamp	0.21 in	5.84 mm	5.33 mm	0.23 in
Conxall/Switchcraft 5182-3PG-530	Brass	Keyed	Bayonet Lock	Weathertight	600 V	Nylon Polyamide (PA)	Gold	Black	Plastic	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	Male Pins Receptacle	Backshell Cable Clamp	0.3 in		7.62 mm	0.32 in	8.13 mm
Conxall/Switchcraft 5182-3PG-315	Brass	Keyed	Bayonet Lock	Weathertight	600 V	Nylon Polyamide (PA)	Gold	Black	Plastic	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	Male Pins Receptacle	Backshell						0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 5182-3PG-518	Brass	Keyed	Bayonet Lock	Weathertight	600 V	Nylon Polyamide (PA)	Gold	Black	Plastic	Free Hanging (In-Line)	Unshielded	-40 °C	115 °C	Male Pins Receptacle	Backshell Cable Clamp								4.57 mm	0.18 in	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.15
		10	$ 12.55
		25	$ 12.06
		50	$ 11.58
		100	$ 10.94
		300	$ 9.97
		500	$ 9.33
		1000	$ 8.56

Description

General part information

5182-3PG Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Cable Assemblies/Connector Catalog

Datasheet
