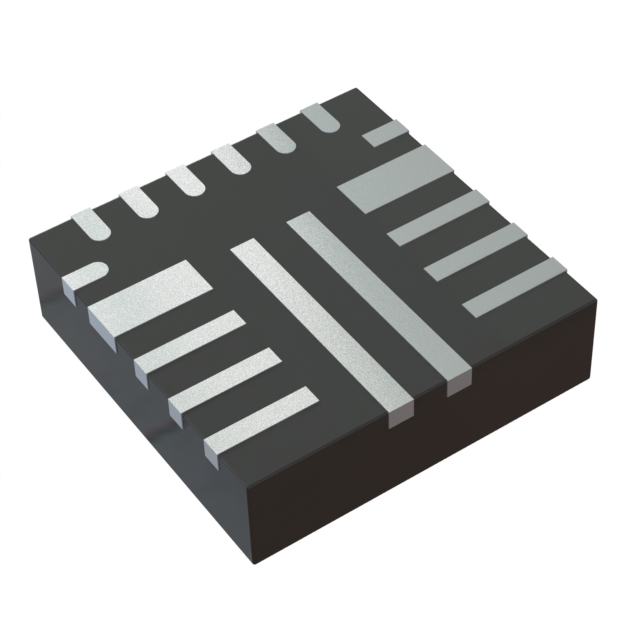

RTQ2823AGQVF(2)
ActiveRichtek USA Inc.
IC REG BUCK ADJ 8A 18VQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTQ2823AGQVF(2)
ActiveRichtek USA Inc.
IC REG BUCK ADJ 8A 18VQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ2823AGQVF(2) |
|---|---|
| Current - Output | 8 A |
| Frequency - Switching | 800 kHz, 1.2 MHz, 400 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 18-PowerVFQFN |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.08 | |
| 10 | $ 2.76 | |||
| 25 | $ 2.61 | |||
| 100 | $ 2.26 | |||
| 250 | $ 2.15 | |||
| 500 | $ 1.93 | |||
| Digi-Reel® | 1 | $ 3.08 | ||
| 10 | $ 2.76 | |||
| 25 | $ 2.61 | |||
| 100 | $ 2.26 | |||
| 250 | $ 2.15 | |||
| 500 | $ 1.93 | |||
| Tape & Reel (TR) | 1500 | $ 1.63 | ||
| 3000 | $ 1.54 | |||
Description
General part information
RTQ2823 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 8A 18-PowerVFQFN
