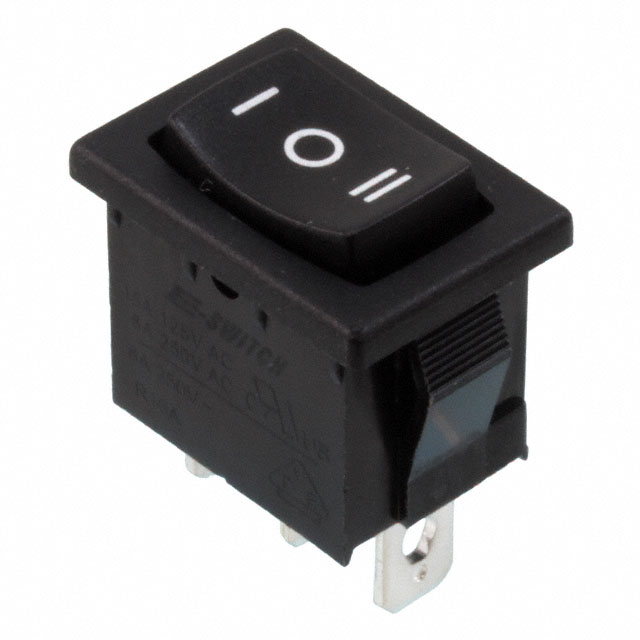

R1966DBLKBLKBF
ActiveE-Switch
SWITCH ROCKER SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R1966DBLKBLKBF |
|---|---|
| Actuator Marking | I O II |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 15 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
R1966DBL Series
| Part | Mechanical Life | Electrical Life | Color - Actuator/Cap | Circuit | Termination Style | Mounting Type | Current Rating (Amps) | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Actuator Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | Solder Lug | Panel Mount Snap-In | 15 A | Triangular Arrows with O | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | PC Pin | Panel Mount Right Angle Snap-In | 15 A | I O II | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | Quick Connect - 0.187" (4.7mm) | Panel Mount Snap-In | 15 A | I O II | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | PC Pin | Panel Mount Snap-In | 15 A | I O II | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | Solder Lug | Panel Mount Snap-In | 15 A | No Marking | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | PC Pin | Panel Mount Snap-In | 15 A | Triangular Arrows with O | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Red | SPDT | PC Pin | Panel Mount Snap-In | 15 A | ON OFF Vertical | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | Quick Connect - 0.187" (4.7mm) | Panel Mount Snap-In | 15 A | Triangular Arrows with O | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | Solder Lug | Panel Mount Snap-In | 15 A | I O II | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
E-Switch | 30000 Steps | 10000 Cycles | Black | SPDT | Solder Lug | Panel Mount Snap-In | 15 A | - O = | 65 °C | -30 ░C | 125 V | Concave (Curved) | On-Off-On |
