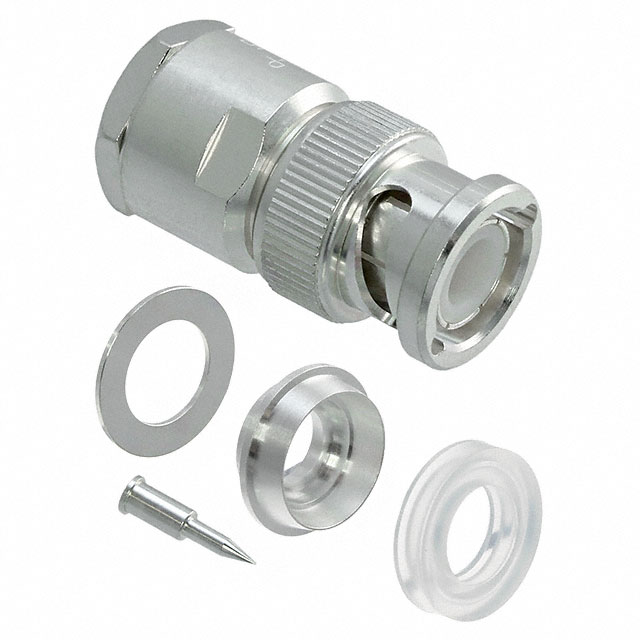

3CW-P(40)

Active

Hirose Electric USA, Inc.

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN BNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	3CW-P(40)

Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Clamp

Part	Center Contact Plating	Impedance	Shield Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Frequency - Max [Max]	Body Finish	Dielectric Material	Connector Style	Mating Cycles	Housing Color	Body Material	Fastening Type	Contact Termination	Number of Ports	Connector Type
Hirose Electric USA, Inc. 3CW-P(40)	Silver	50 Ohms	Clamp	Free Hanging (In-Line)	-30 ░C	60 °C	Brass	4 GHz	Silver	Polytetrafluoroethylene (PTFE)	BNC	1000	Silver	Brass	Bayonet Lock	Solder	1	Male Pin Plug
Hirose Electric USA, Inc. 3CW-PL(41)	Gold	50 Ohms	Clamp	Free Hanging (In-Line) Right Angle	-40 °C	85 °C	Brass		Nickel	Polytetrafluoroethylene (PTFE)	BNC	1000	Silver	Brass	Bayonet Lock	Solder	1	Male Pin Plug
