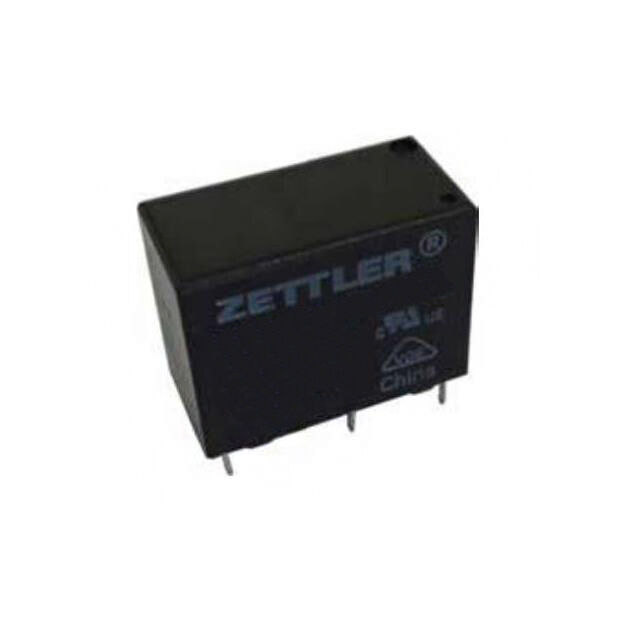

AZ9403-1C-5DE
ActiveAmerican Zettler
RELAY GEN PURPOSE SPDT 10A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ9403-1C-5DE |
|---|---|
| Approval Agency | UL, VDE |
| Coil Current | 90.9 mA |
| Coil Insulation | Class F |
| Coil Resistance | 55 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2770 VA, 150 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 150 VDC, 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.02 | |
| 10 | $ 0.91 | |||
| 25 | $ 0.87 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.77 | |||
| 450 | $ 0.75 | |||
| 950 | $ 0.72 | |||
| 4900 | $ 0.67 | |||
Description
General part information
AZ9403-1C Series
General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
