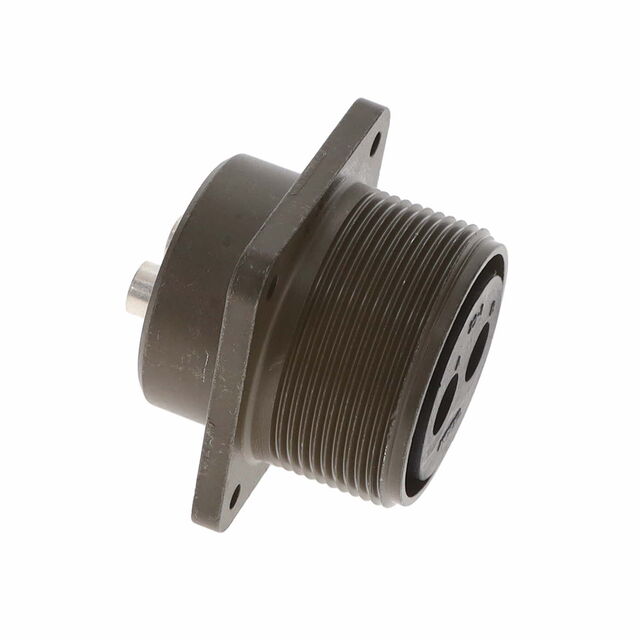

MS3102E22-1S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3102E22-1S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102E22-1S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	22-1
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

MS3102E22 Series

Part	Contact Material	Ingress Protection	Insert Material	Shell Size - Insert	Color	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Orientation	Shell Material	Shielding	Contact Finish - Mating	Qualification	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Applications	Connector Type	Shell Finish	Grade	Current Rating (Amps)	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Voltage Rating
Amphenol Industrial Operations MS3102E22-14P	Copper Alloy	Environment Resistant	Neoprene	22-14	Olive Drab	31.75 mm	1.25 in	19	N	Aluminum Alloy	Unshielded	Silver	MIL-5015	Flange	-55 °C	125 °C	Metal	Marine Military	Male Pins Receptacle	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3102E22-23PW
Amphenol Industrial Operations MS3102E22-28P	Copper Alloy	Environment Resistant	Neoprene		Olive Drab			7	N	Aluminum Alloy	Unshielded	Silver	MIL-DTL-5015	Flange	-55 °C	125 °C	Metal	Marine Military	Male Pins Receptacle	Olive Drab Chromate over Cadmium	Military	23 A	22	28
Amphenol Industrial Operations MS3102E22-10SZ
Amphenol Industrial Operations MS3102E22-1S	Copper Alloy	Environment Resistant	Neoprene	22-1	Olive Drab			2	N	Aluminum Alloy	Unshielded	Silver	MIL-DTL-5015	Flange	-55 °C	125 °C	Metal	Marine Military	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	Military	46 A			900 VAC 1250 VDC
Amphenol Industrial Operations MS3102E22-19SW	Copper Alloy	Environment Resistant	Neoprene	22-19	Olive Drab	31.75 mm	1.25 in	14	W	Aluminum Alloy	Unshielded	Silver	MIL-5015	Flange	-55 °C	125 °C	Metal	Marine Military	Receptacle Female Sockets	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3102E22-20P	Copper Alloy	Environment Resistant	Neoprene		Olive Drab			9	N	Aluminum Alloy	Unshielded	Silver	MIL-DTL-5015	Flange	-55 °C	125 °C	Metal	Marine Military	Male Pins Receptacle	Olive Drab Chromate over Cadmium	Military	13 A	20	22
Amphenol Industrial Operations MS3102E22-19PW
Amphenol Industrial Operations MS3102E22-22P	Copper Alloy	Environment Resistant	Neoprene		Olive Drab	31.75 mm	1.25 in	4	N	Aluminum Alloy	Unshielded	Silver	MIL-5015	Flange	-55 °C	125 °C	Metal	Marine Military	Male Pins Receptacle	Olive Drab Chromate over Cadmium			22	22
Amphenol Industrial Operations MS3102E22-19P	Copper Alloy	Environment Resistant	Neoprene	22-19	Olive Drab	31.75 mm	1.25 in	14	N	Aluminum Alloy	Unshielded	Silver	MIL-5015	Flange	-55 °C	125 °C	Metal	Marine Military	Male Pins Receptacle	Olive Drab Chromate over Cadmium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 22.37
		10	$ 19.59
		25	$ 18.74
		50	$ 18.13
		100	$ 17.53
		250	$ 16.56
		500	$ 16.08

Description

General part information

MS3102E22 Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
