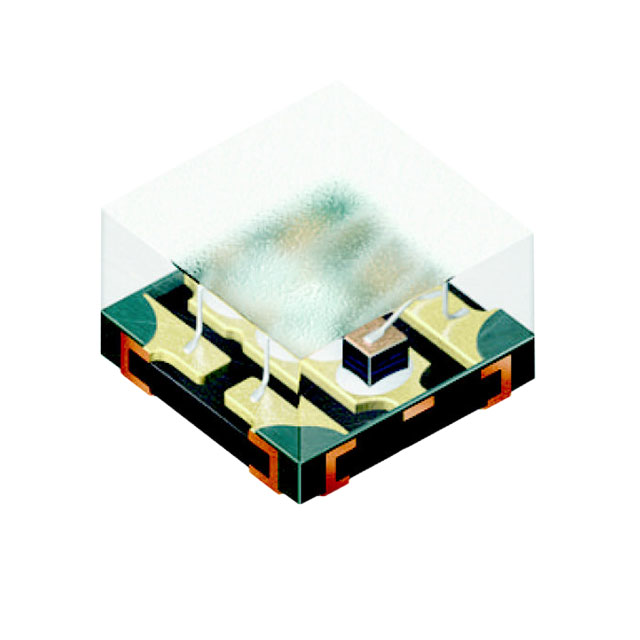

LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB

Active

ams-OSRAM USA INC.

LED RGB CLEAR 4SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED RGB CLEAR 4SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Color	Supplier Device Package	Viewing Angle	Height (Max) [Max] [z]	Package / Case	Lens Color	Lens Size	Wavelength - Dominant	Lens Transparency	Configuration	Voltage - Forward (Vf) (Typ)	Lens Style	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
ams-OSRAM USA INC. LRTBR48G-P9Q7-1+R7S5-26+NP-68-R33B-ZO	Surface Mount	1 mm	1 mm	Blue Green Red	4-SMD	120 °	1 mm	0404
ams-OSRAM USA INC. LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB	Surface Mount	1 mm	1 mm	Blue Green Red	4-SMD	120 °		0404	Colorless	1.13 mm	471 nm 530 nm 623 nm	Clear	Common Anode	1.95 V 2.7 V 2.7 V	Square with Flat Top	5 mA	10 mA	5 mA	455 nm 523 nm 632 nm	51 mcd	228 mcd	102 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) 623nm Red, 530nm Green, 471nm Blue LED Indication - Discrete 1.95V Red, 2.7V Green, 2.7V Blue 0404 (1010 Metric)
