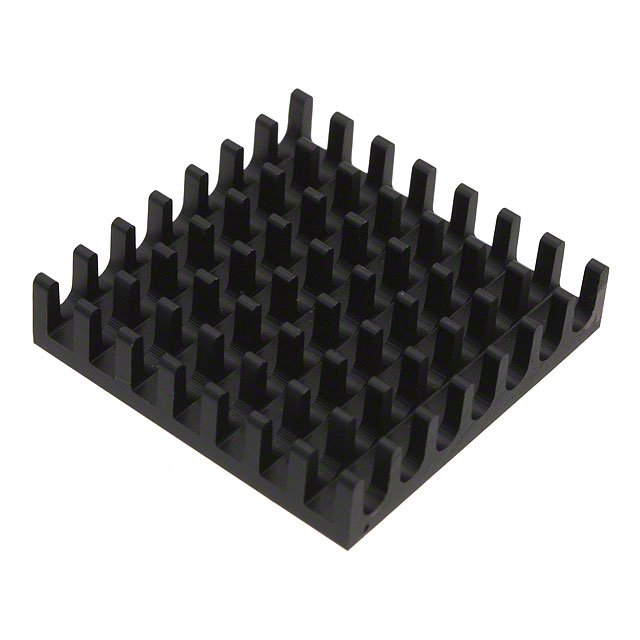

658-25ABT4E

Active

Wakefield-Vette

HEATSINK CPU 28MM SQ BLK W/TAPE

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK CPU 28MM SQ BLK W/TAPE

Technical Specifications

Parameters and characteristics for this part

Specification	658-25ABT4E

Attachment Method	Adhesive
Fin Height [z]	6.35 mm
Fin Height [z]	0.25 in
Length [x]	27.94 mm
Length [x]	1.1 "
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Power Dissipation @ Temperature Rise	2 W, 40 °C
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	500 LFM, 5 °C/W
Type	Top Mount
Width [x]	1.1 "
Width [x]	27.94 mm

Part	Power Dissipation @ Temperature Rise	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Material	Length [x]	Length [x]	Width [x]	Width [x]	Shape	Package Cooled	Attachment Method	Material Finish	Type
Wakefield-Vette 658-25ABT4E	2 W 40 °C	5 °C/W 500 LFM	6.35 mm	0.25 in	Aluminum	27.94 mm	1.1 "	1.1 "	27.94 mm	Pin Fins Square	BGA	Adhesive	Black Anodized	Top Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum 2.0W @ 40°C Top Mount
