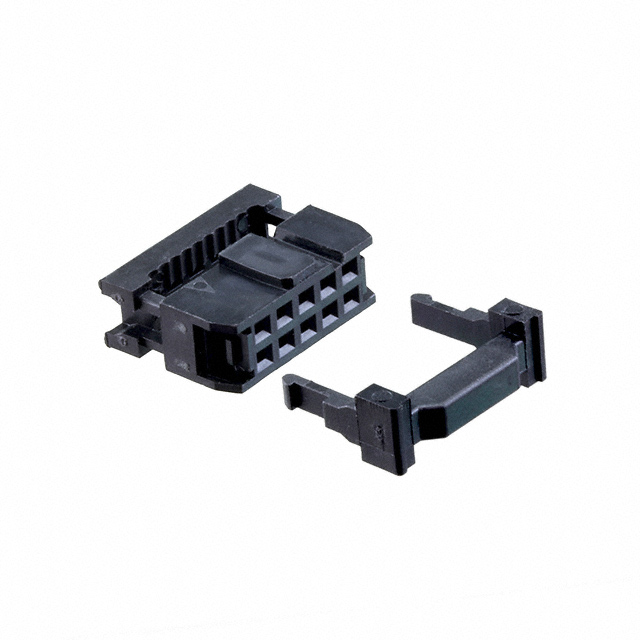

3030-10-0103-00

Active

CnC Tech, LLC

CONN SOCKET 10POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 10POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3030-10-0103-00

Cable Termination	IDC
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

Part	Features	Number of Rows	Wire Type	Mounting Type	Cable Termination	Contact Finish	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Contact Type	Pitch [x]	Pitch [x]	Connector Type	Number of Positions
CnC Tech, LLC 3030-10-0103-00	Feed Through Polarizing Key Strain Relief	2	Ribbon Cable	Free Hanging (In-Line)	IDC	Gold	Flash	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Socket	10
CnC Tech, LLC 3030-10-0101-00		2	Ribbon Cable	Free Hanging (In-Line)	IDC	Gold	Flash	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	Socket	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Rectangular Socket Connector IDC Gold
