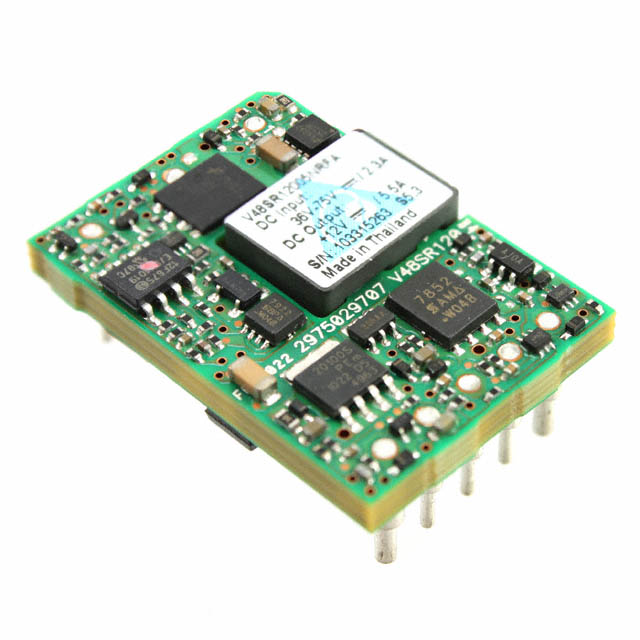

V48SR12005NRFA

Obsolete

Delta Electronics

DC DC CONVERTER 12V 66W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 12V 66W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Features	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications	Voltage - Isolation	Control Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input (Min) [Min]
Delta Electronics V48SR12005NRFA	1	OCP OTP OVP Remote On/Off UVLO	Through Hole	22.9 mm	1.3 "	9.2 mm	0.9 "	0.36 in	33 mm	ITE (Commercial)	2250 VDC	Active Low Enable	5.5 A	75 V	91 %	12 V	Isolated Module	-40 °C	120 °C	8-DIP Module 1/16 Brick	36 V
Delta Electronics V48SR15004NRFA	1	OCP OTP OVP Remote On/Off UVLO	Through Hole	22.8 mm	1.3 "	9.5 mm	0.9 "	0.37 in	33 mm	ITE (Commercial)	2250 VDC	Active Low Enable	4.4 A	75 V	90.5 %	15 V	Isolated Module	-40 °C	121 °C	8-DIP Module 1/16 Brick	36 V
Delta Electronics V48SR1R825NNFA	1	OCP OTP OVP Remote On/Off UVLO	Through Hole	22.9 mm	1.3 "	9.5 mm	0.9 "	0.37 in	33 mm	ITE (Commercial)	2250 VDC	Active Low Enable	25 A	75 V	87 %	1.8 V	Isolated Module			8-DIP Module 1/16 Brick	36 V
Delta Electronics V48SR3R320NRFA	1	OCP OTP OVP Remote On/Off UVLO	Through Hole	22.9 mm	1.3 "	9.4 mm	0.9 "	0.37 in	33 mm	ITE (Commercial)	2250 VDC	Active Low Enable	20 A	75 V	90.5 %	3.3 V	Isolated Module			8-DIP Module 1/16 Brick	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 5.5A 36V - 75V Input
