071,BK

Active

Serpac

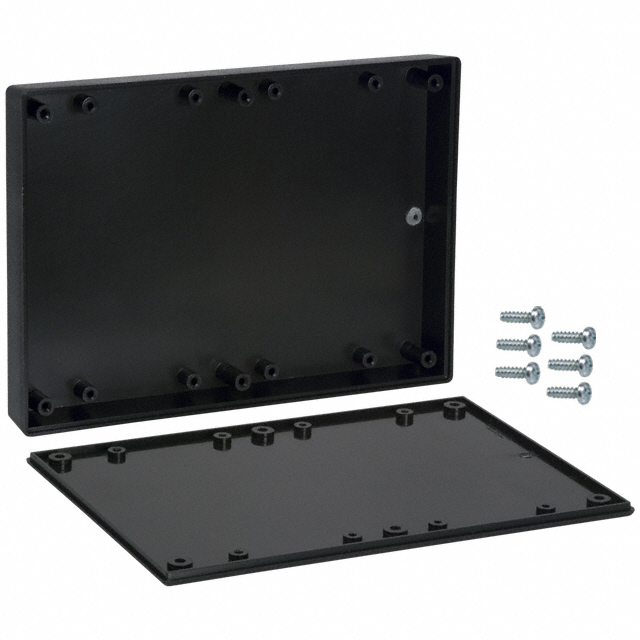

BOX ABS BLACK 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	071,BK

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Black
Container Type	Box
Features	PCB Supports
Height [z]	22.86 mm
Height [z]	0.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	139.71 g
Weight	0.308 lb

Part	Ratings	Color	Container Type	Features	Material Flammability Rating	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Weight	Weight	Material
Serpac 071,AL	IP40 NEMA 1	Almond	Box	PCB Supports	UL94 HB	22.86 mm	0.9 in	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	139.71 g	0.308 lb	Plastic ABS
Serpac 071,BK	IP40 NEMA 1	Black	Box	PCB Supports	UL94 HB	22.86 mm	0.9 in	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	139.71 g	0.308 lb	Plastic ABS
Serpac 071,BK-BULK	IP40 NEMA 1	Black	Box	PCB Supports	UL94 HB	22.86 mm	0.9 in	33.6 in²	217 cm²	123.95 mm	174.75 mm	4.88 in	6.88 in	2.54 mm	0.1 in	139.71 g	0.308 lb	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black 6.880" L x 4.880" W (174.75mm x 123.95mm) X 0.900" (22.86mm)
