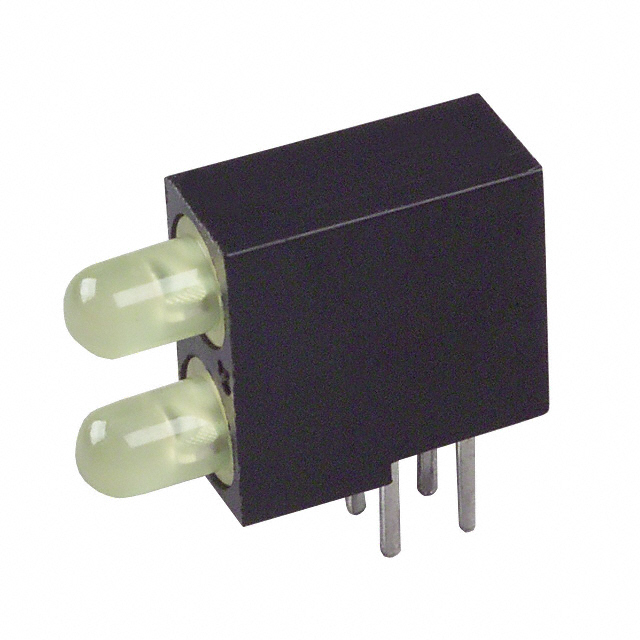

SSF-LXH2103YYD/4
ActiveLumex Opto/Components Inc.
LED CBI 3MM BI-LVL YELLOW RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSF-LXH2103YYD/4
ActiveLumex Opto/Components Inc.
LED CBI 3MM BI-LVL YELLOW RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSF-LXH2103YYD/4 |
|---|---|
| Color | Yellow (x 2) |
| Configuration | 2 High |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 30 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.13 | |
| 10 | $ 0.72 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.37 | |||
| 10000 | $ 0.36 | |||
Description
General part information
SSF-LXH2103 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Yellow (x 2) Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
