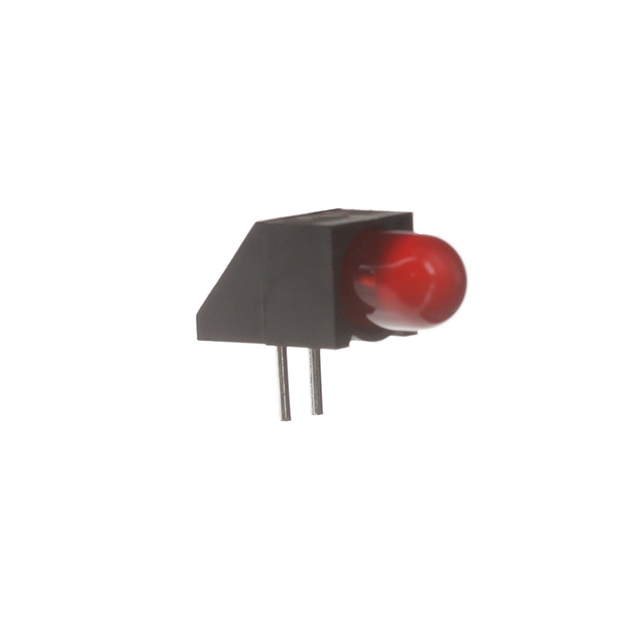

H178CHDL

Active

Bivar Inc.

PC-TYPE/STACKABLE LED LAMP,ORANGE-RED,DIFFUSED,LMP-5

Search across all available documentation for this part.

Active

Bivar Inc.

PC-TYPE/STACKABLE LED LAMP,ORANGE-RED,DIFFUSED,LMP-5

Technical Specifications

Parameters and characteristics for this part

Part	Lens Style	Lens Size	Lens Size	Configuration	Current	Viewing Angle	Lens Type	Voltage Rating	Color	Millicandela Rating	Wavelength - Peak	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle [custom]
Bivar Inc. H178CHDL	Round with Domed Top	T-1 3/4	5 mm	Single	2 mA	45 °	Diffused	2 V	Red	5 mcd
Bivar Inc. H178CSYD	Round with Domed Top	T-1 3/4	5 mm	Single		45 °	Diffused	2 V	Yellow	300 mcd	590 nm
Bivar Inc. H178CSRD	Round with Domed Top	T-1 3/4	5 mm	Single		45 °	Diffused	1.7 V	Red	40 mcd	645 nm
Bivar Inc. H178CHD	Round with Domed Top	T-1 3/4	5 mm	Single		45 °	Diffused	2 V	Red	25 mcd
Bivar Inc. H178CGD	Round with Domed Top	T-1 3/4	5 mm	Single		45 °	Diffused	2.1 V	Green	25 mcd	568 nm	Through Hole
Bivar Inc. H178CYD	Round with Domed Top	T-1 3/4	5 mm	Single		45 °	Diffused	2 V	Yellow	25 mcd	590 nm
Bivar Inc. H178CBC-3-YG-CA	Round with Domed Top	T-1 3/4	5 mm	Single	30 mA 30 mA		Diffused White	2 V 2.1 V	Green Yellow		568 nm 590 nm		4 mcd	6 mcd	40 °
Bivar Inc. H178CAD	Round with Domed Top	T-1 3/4	5 mm	Single		45 °	Diffused	2 V	Amber	25 mcd	605 nm
Bivar Inc. H178CYDL	Round with Domed Top	T-1 3/4	5 mm	Single	2 mA	45 °	Diffused	2 V	Yellow	4 mcd	590 nm
Bivar Inc. H178CGDL	Round with Domed Top	T-1 3/4	5 mm	Single	2 mA	45 °	Diffused	2.1 V	Green	5 mcd	568 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused 2V 2mA Round with Domed Top 5mm, T-1 3/4
