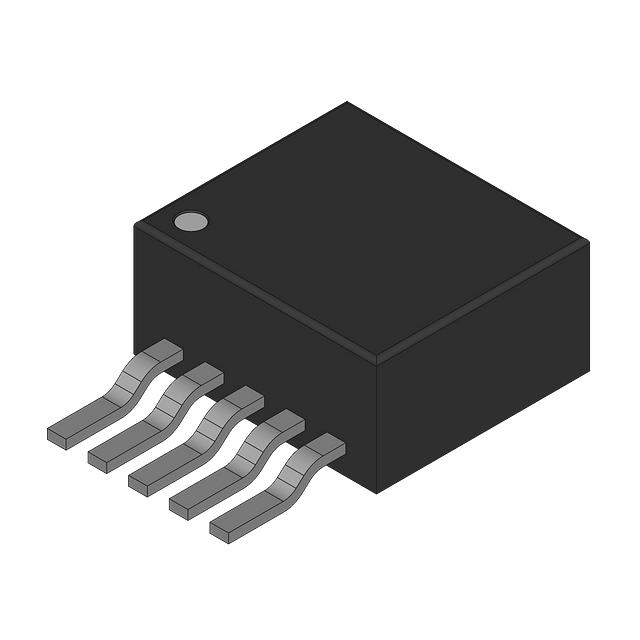

LP3965ES-ADJ

Active

National Semiconductor

IC REG LIN POS ADJ 1.5A DDPAK

Search across all available documentation for this part.

Active

National Semiconductor

IC REG LIN POS ADJ 1.5A DDPAK

Technical Specifications

Parameters and characteristics for this part

Specification	LP3965ES-ADJ

Control Features	Enable
Current - Output	1.5 A
Current - Quiescent (Iq)	9 mA
Current - Supply (Max) [Max]	15 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR [Max]	60 dB
PSRR [Min]	40 dB
Supplier Device Package	DDPAK/TO-263-5
Voltage - Input (Max) [Max]	7 V
Voltage - Output (Max) [Max]	5.1 V
Voltage - Output (Min/Fixed)	1.216 V
Voltage Dropout (Max) [Max]	0.55 V

Part	Number of Regulators	Current - Supply (Max) [Max]	Current - Output	Output Type	Voltage - Output (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Voltage - Input (Max) [Max]	Control Features	PSRR [Max]	PSRR [Min]	Current - Quiescent (Iq)	Protection Features	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage Dropout (Max) [Max]	Mounting Type
National Semiconductor LP3965ES-ADJ	1	15 mA	1.5 A	Adjustable	5.1 V	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	125 °C	-40 °C	Positive	7 V	Enable	60 dB	40 dB	9 mA	Over Current Over Temperature Short Circuit	1.216 V	DDPAK/TO-263-5	0.55 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	89	$ 3.38

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A DDPAK/TO-263-5
