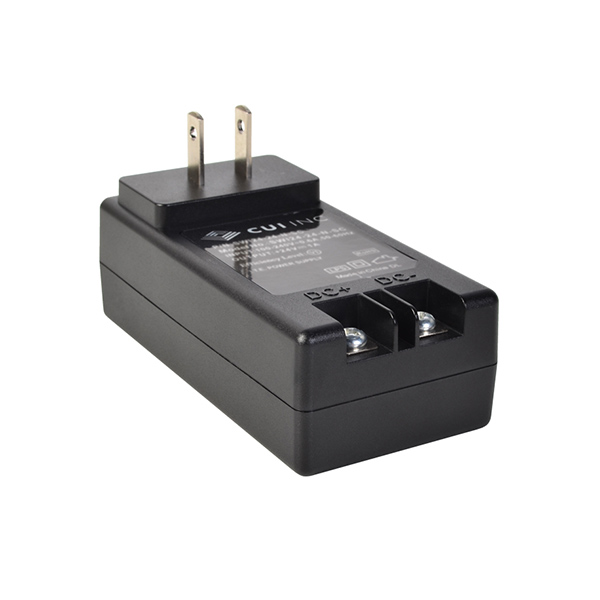

SWI24-24-N-SC

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 24V 24W

Deep-Dive with AI

Search across all available documentation for this part.

SWI24-24-N-SC

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 24V 24W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWI24-24-N-SC

Applications	ITE (Commercial)
Approval Agency	IEC, CB Scheme, UL, CSA
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Screw Terminal
Power (Watts)	24 W
Region Utilized	North America
Standard Number	C22.2 No. 60950-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

SWI24 Series

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Voltage - Output	Applications	Region Utilized	Form	Weight	Weight	Operating Temperature [Max]	Approval Agency	Efficiency	No Load Power Consumption	Cord Length	Cord Length	Power (Watts)	Input Connector	Current - Output (Max) [Max]	Polarization	Standard Number	Output Connector [z]	No Load Power Consumption [Max]
CUI Inc. SWI24-15-E-P6R	1.34 in	2.76 in	34 mm	2.83 "	70 mm	72 mm	Fixed Blade	90 VAC	264 VAC	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	15 VDC	ITE (Commercial)	Europe	Wall Mount (Class II)	148.32 g	0.327 lb	40 °C	CB Scheme EN IEC	CoC Tier 2 Level VI	100 mW	1.5 m	59 in	24 W	CEE 7/16	1.6 A	Positive Center	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1
CUI Inc. SWI24-12-E-P14	1.34 in	3.54 "	34 mm	2.83 "	90 mm	72 mm	Fixed Blade	90 VAC	264 VAC		1.7 mm 4.75 mm	Barrel Plug	12 V	ITE (Commercial)	Europe	Wall Mount (Class II)			40 °C	CB Scheme EN IEC	CoC Tier 2 Level VI		1.5 m	59 in	24 W	CEE 7/16	2 A	Positive Center	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	9.5 mm	75 mW
CUI Inc. SWI24-24-N-N5	1.34 in	2.05 in	34 mm	2.83 "	52 mm	72 mm	Fixed Blade	90 VAC	264 VAC	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	24 V	ITE (Commercial)	North America	Wall Mount (Class II)	148.32 g	0.327 lb	40 °C	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	100 mW	1.5 m	59 in	24 W	NEMA 1-15P	1 A	Negative Center	60950-1 62368-1 C22.2 No. 60950-1
CUI Inc. SWI24-24-N-SC							Fixed Blade	90 VAC	264 VAC			Screw Terminal	24 V	ITE (Commercial)	North America	Wall Mount (Class II)			40 °C	CB Scheme CSA IEC UL	Level VI	100 mW			24 W	NEMA 1-15P	1 A		60950-1 C22.2 No. 60950-1
CUI Inc. SWI24-24-E-P5	1.34 in	2.76 in	34 mm	2.83 "	70 mm	72 mm	Fixed Blade	90 VAC	264 VAC	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	24 V	ITE (Commercial)	Europe	Wall Mount (Class II)	148.32 g	0.327 lb	40 °C	CB Scheme EN IEC	CoC Tier 2 Level VI	100 mW	1.5 m	59 in	24 W	CEE 7/16	1 A	Positive Center	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1
CUI Inc. SWI24-24-N-ST	1.34 in	2.72 in	34 mm	2.83 "	69 mm	72 mm	Fixed Blade	90 VAC	264 VAC			Stripped Tinned Wire Leads	24 V	ITE (Commercial)	North America	Wall Mount (Class II)			40 °C	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	100 mW	1.5 m	59 in	24 W	NEMA 1-15P	1 A		60950-1 62368-1 C22.2 No. 60950-1
CUI Inc. SWI24-24-N-P11	1.34 in	2.72 in	34 mm	2.83 "	69 mm	72 mm	Fixed Blade	90 VAC	264 VAC	9.5 mm	2.5 mm 5.5 mm	Barrel Plug	24 V	ITE (Commercial)	North America	Wall Mount (Class II)			40 °C	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	100 mW	1.5 m	59 in	24 W	NEMA 1-15P	1 A	Positive Center	60950-1 62368-1 C22.2 No. 60950-1
CUI Inc. SWI24-24-N-P5	1.34 in	2.05 in	34 mm	2.83 "	52 mm	72 mm	Fixed Blade	90 VAC	264 VAC	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	24 V	ITE (Commercial)	North America	Wall Mount (Class II)	148.32 g	0.327 lb	40 °C	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	100 mW	1.5 m	59 in	24 W	NEMA 1-15P	1 A	Positive Center	60950-1 62368-1 C22.2 No. 60950-1
CUI Inc. SWI24-15-N-P5	1.34 in	2.05 in	34 mm	2.83 "	52 mm	72 mm	Fixed Blade	90 VAC	264 VAC	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	15 VDC	ITE (Commercial)	North America	Wall Mount (Class II)	148.32 g	0.327 lb	40 °C	CB Scheme CCC CSA FCC IEC PSE UL	Level VI	100 mW	1.5 m	59 in	24 W	NEMA 1-15P	1.6 A	Positive Center	60950-1 62368-1 C22.2 No. 60950-1
CUI Inc. SWI24-24-E-P6R	1.34 in	2.76 in	34 mm	2.83 "	70 mm	72 mm	Fixed Blade	90 VAC	264 VAC	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	24 V	ITE (Commercial)	Europe	Wall Mount (Class II)	148.32 g	0.327 lb	40 °C	CB Scheme EN IEC	CoC Tier 2 Level VI	100 mW	1.5 m	59 in	24 W	CEE 7/16	1 A	Positive Center	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.88
		5	$ 21.54
		10	$ 21.20
		25	$ 20.19
		50	$ 19.52
		100	$ 18.18
		250	$ 17.91

Description

General part information

SWI24 Series

24V 24 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

No documents available
