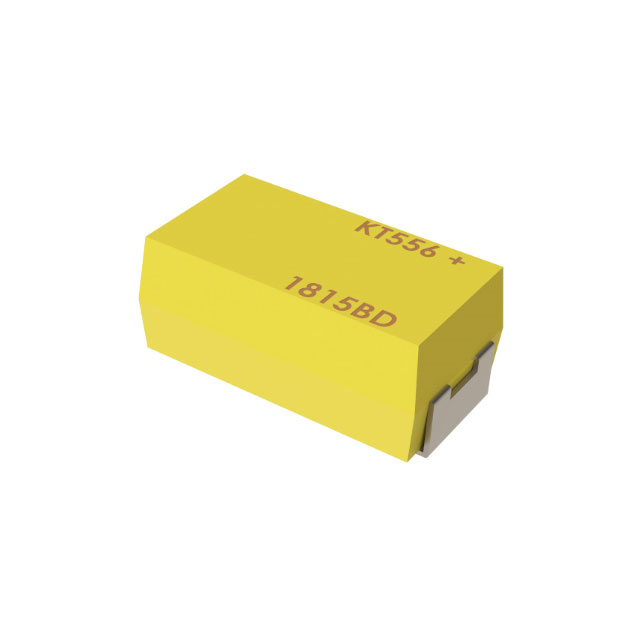

T556B206M060AT

Active

KEMET

TANTALUM CAPACITORS - POLYMER 60V 20UF 20% ESR=200MOHMS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T556B206M060AT Spec

T556B206M060AT

Active

KEMET

TANTALUM CAPACITORS - POLYMER 60V 20UF 20% ESR=200MOHMS

Deep-Dive with AI

DocumentsDatasheet T556B206M060AT Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T556B206M060AT

Capacitance	20 µF
ESR (Equivalent Series Resistance)	200 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	9.6 mm
Height - Seated (Max) [Max] [z]	0.378 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Size / Dimension [x]	0.965 "
Size / Dimension [x]	24.5 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Tolerance	20 %
Type	Hermetically Sealed
Voltage - Rated	60 V

T556B Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Voltage - Rated	Features	Tolerance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Package / Case	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Rated [custom]
KEMET T556B187K010AH	9.6 mm	0.378 "	Surface Mount	10 V	General Purpose	10 %	2000 Hrs	110 mOhm	-55 °C	125 °C	180 çF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed
KEMET T556B187M010AH	9.6 mm	0.378 "	Surface Mount	10 V	General Purpose	20 %	2000 Hrs	110 mOhm	-55 °C	125 °C	180 çF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed
KEMET T556B506K025AT	9.6 mm	0.378 "	Surface Mount	25 VDC	General Purpose	10 %	2000 Hrs	170 mOhm	-55 °C	125 °C	50 µF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed
KEMET T556B127K015AH	9.6 mm	0.378 "	Surface Mount	15 V	General Purpose	10 %	2000 Hrs	110 mOhm	-55 °C	125 °C	120 µF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed
KEMET T556B206M060AT	9.6 mm	0.378 "	Surface Mount	60 V	General Purpose	20 %	2000 Hrs	200 mOhm	-55 °C	125 °C	20 µF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed
KEMET T556B107M050AT	9.6 mm	0.378 "	Surface Mount	50 VDC	General Purpose	20 %	2000 Hrs	130 mOhm	-55 °C	125 °C	100 µF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed
KEMET T556B687K008AH	9.6 mm	0.378 "	Surface Mount		General Purpose	10 %	2000 Hrs	90 mOhm	-55 °C	125 °C	680 µF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed	8 V
KEMET T556B687K008AT	9.6 mm	0.378 "	Surface Mount		General Purpose	10 %	2000 Hrs	90 mOhm	-55 °C	125 °C	680 µF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed	8 V
KEMET T556B506M025AT	9.6 mm	0.378 "	Surface Mount	25 VDC	General Purpose	20 %	2000 Hrs	170 mOhm	-55 °C	125 °C	50 µF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed
KEMET T556B706K015AT	9.6 mm	0.378 "	Surface Mount	15 V	General Purpose	10 %	2000 Hrs	140 mOhm	-55 °C	125 °C	70 µF	Nonstandard	B	8.5 mm	0.965 "	0.335 in	24.5 mm	Hermetically Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 44.57

Description

General part information

T556B Series

20 µF Hermetically Sealed Tantalum Polymer Capacitor 60 V Nonstandard 200mOhm @ 100kHz
