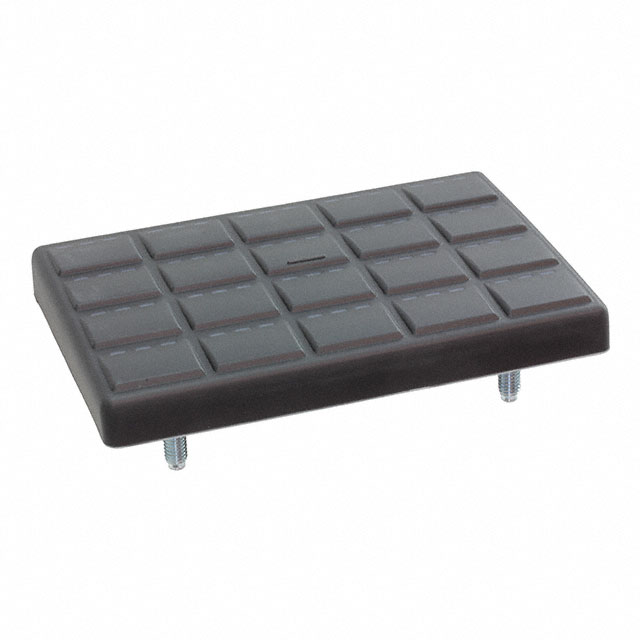

3K020-4RC3AG

Active

Grayhill Inc.

SWITCH KEYPAD 20KEY ILLUM

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 20KEY ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	3K020-4RC3AG

Approval Agency	CE
Illumination	Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Key Color	Black
Key Type	Rubber Overlay
Legend	Blank Buttons
Legend Type	Fixed
Matrix (Columns x Rows) [custom]	5
Matrix (Columns x Rows) [custom]	4
Mounting Type	Panel Mount, Front
Number of Keys	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operational Life	1000000 Cycles
Output Type	CAN Bus (J1939)
Panel Cutout Dimensions [diameter]	57.15 mm
Switch Type	Snap Dome
Termination Style	Connector

Part	Mounting Type	Ingress Protection	Output Type	Approval Agency	Legend Type	Termination Style	Key Color	Number of Keys	Illumination	Switch Type	Operating Temperature [Max]	Operating Temperature [Min]	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Legend	Key Type	Operational Life	Panel Cutout Dimensions [diameter]
Grayhill Inc. 3K020-4RC3AG	Panel Mount Front	IP67 - Dust Tight Waterproof	CAN Bus (J1939)	CE	Fixed	Connector	Black	20	Illuminated	Snap Dome	85 °C	-40 °C	5	4	Blank Buttons	Rubber Overlay	1000000 Cycles	57.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 20 Rubber Overlay Keys Snap Dome Contacts CAN Bus (J1939) Output Illuminated
