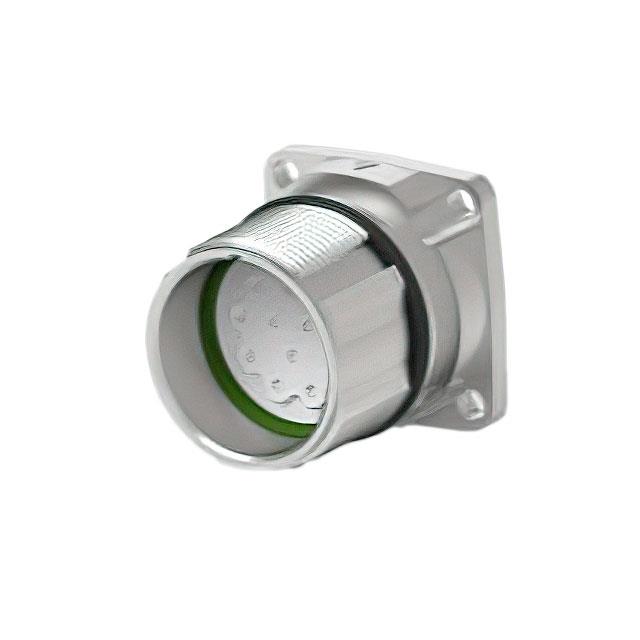

AEA066N00000201000

Active

TE Intercontec

CONN RCPT HSG MALE 9POS PNL MNT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 9POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	AEA066N00000201000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Unshielded
Type	For Male Pins

Part	Insert Material	Ingress Protection	Fastening Type	Shell Finish	Shell Material	Note	Orientation	Shell Size - Insert	Housing Color	Connector Type	Shielding	Contact Shape	Material Flammability Rating	Includes	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Number of Positions
TE Intercontec AEA066N00000201000	Polybutylene Terephthalate (PBT)	IP66/IP67	Push-Twist	Nickel	Zinc Die Cast	Contacts Not Included	Keyed	M23-9	Silver	Receptacle Housing	Unshielded	Circular	UL94 V-0	1 Connector 1 O-Ring	For Male Pins	-20 C	130 °C	Flange	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Receptacle Housing Panel Mount
