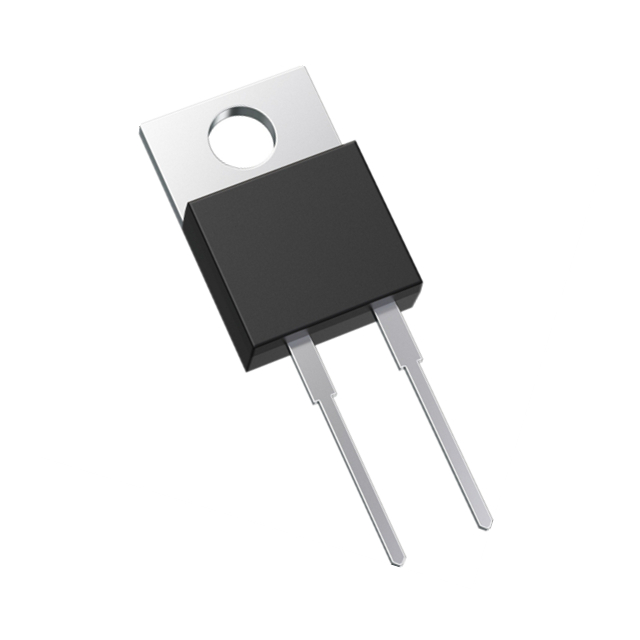

NC1D120C10ATNG
ActiveNovuSem
SIC SCHOTTKY 1200V 10A TO220- 2L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NC1D120C10ATNG
ActiveNovuSem
SIC SCHOTTKY 1200V 10A TO220- 2L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NC1D120C10ATNG |
|---|---|
| Capacitance @ Vr, F | 670 pF |
| Current - Average Rectified (Io) | 10 A |
| Current - Reverse Leakage @ Vr | 35 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-220-2 |
| Reverse Recovery Time (trr) | 0 ns |
| Speed | No Recovery Time |
| Supplier Device Package | TO-220-2L |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 300 | $ 1.99 | |
Description
General part information
NC1D120C10ATNG
Diode 1200 V 10A Through Hole TO-220-2L
Documents
Technical documentation and resources
