MPC5YDW12.0
ActiveBivar Inc.
LED PANEL MOUNT INDICATOR, YELLOW, 2 VDC, 8 MM, 30 MA, 25 MCD, NOT RATED
Deep-Dive with AI
Search across all available documentation for this part.
MPC5YDW12.0
ActiveBivar Inc.
LED PANEL MOUNT INDICATOR, YELLOW, 2 VDC, 8 MM, 30 MA, 25 MCD, NOT RATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPC5YDW12.0 |
|---|---|
| Current | 30 mA |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 25 mcd |
| Panel Cutout Dimensions | 8.13 mm |
| Panel Cutout Dimensions | 0.32 in |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 12" (304.80mm) |
| Type | LED |
| Viewing Angle | 45 ° |
| Voltage | 2 V |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MPC5YDW12.0 Series

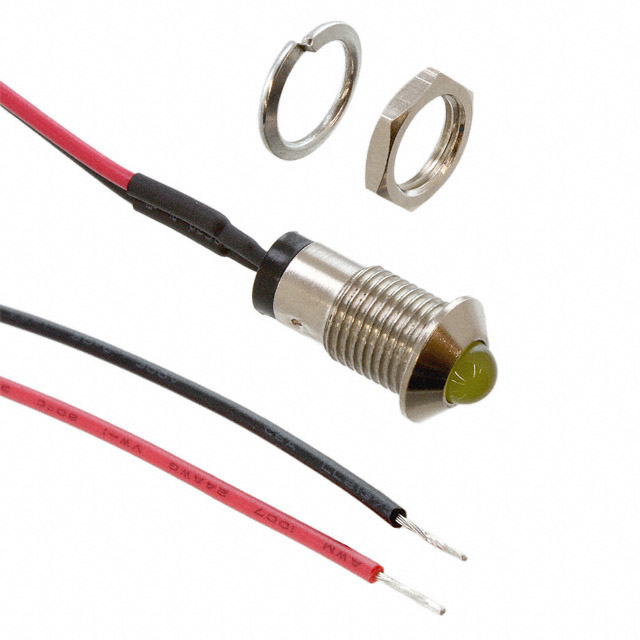

The MPC5YDW12.0 is a yellow panel-mount LED Indicator made of GaAs/GaP with diffused round lens.
