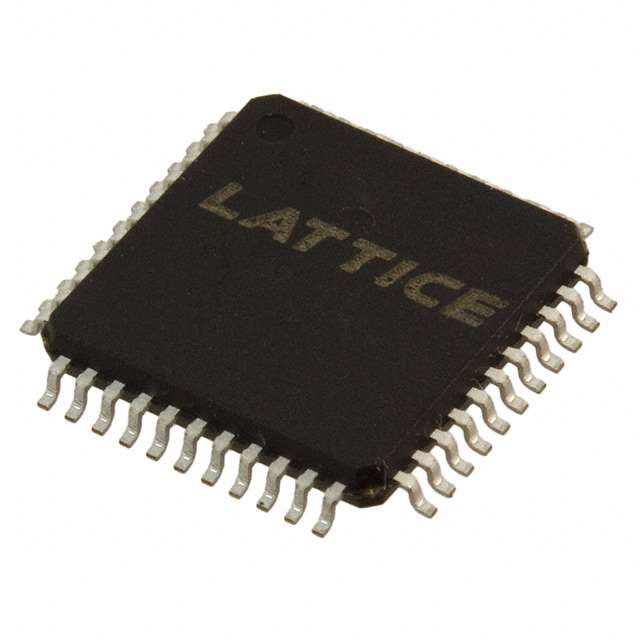

ISPLSI 2032A-150LT44
ObsoleteLATTICE SEMICONDUCTOR
IC CPLD 32MC 5.5NS 44TQFP
Deep-Dive with AI
Search across all available documentation for this part.
ISPLSI 2032A-150LT44
ObsoleteLATTICE SEMICONDUCTOR
IC CPLD 32MC 5.5NS 44TQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISPLSI 2032A-150LT44 |
|---|---|
| Delay Time tpd(1) Max [Max] | 5.5 ns |
| Mounting Type | Surface Mount |
| Number of Gates | 1000 |
| Number of I/O | 32 |
| Number of Logic Elements/Blocks | 8 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 44-TQFP |
| Programmable Type | In System Programmable |
| Supplier Device Package | 44-TQFP (10x10) |
| Voltage Supply - Internal [Max] | 5.25 V |
| Voltage Supply - Internal [Min] | 4.75 V |
ISPLSI 2032A Series
| Part | Number of Gates | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Supply - Internal [Min] | Voltage Supply - Internal [Max] | Package / Case | Programmable Type | Delay Time tpd(1) Max [Max] | Mounting Type | Number of Logic Elements/Blocks | Supplier Device Package | Number of I/O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
LATTICE SEMICONDUCTOR | 1000 | 70 °C | 0 °C | 4.75 V | 5.25 V | 48-LQFP | In System Programmable | 15 ns | Surface Mount | 8 | 48-TQFP (7x7) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 85 °C | -40 °C | 4.5 V | 5.5 V | 44-TQFP | In System Programmable | 15 ns | Surface Mount | 8 | 44-TQFP (10x10) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 70 °C | 0 °C | 4.75 V | 5.25 V | 44-TQFP | In System Programmable | 5.5 ns | Surface Mount | 8 | 44-TQFP (10x10) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 70 °C | 0 °C | 4.75 V | 5.25 V | 44-LCC (J-Lead) | In System Programmable | 5.5 ns | Surface Mount | 8 | 44-PLCC (16.59x16.59) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 70 °C | 0 °C | 4.75 V | 5.25 V | 44-LCC (J-Lead) | In System Programmable | 10 ns | Surface Mount | 8 | 44-PLCC (16.59x16.59) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 70 °C | 0 °C | 4.75 V | 5.25 V | 44-LCC (J-Lead) | In System Programmable | 5 ns | Surface Mount | 8 | 44-PLCC (16.59x16.59) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 70 °C | 0 °C | 4.75 V | 5.25 V | 48-LQFP | In System Programmable | 7.5 ns | Surface Mount | 8 | 48-TQFP (7x7) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 85 °C | -40 °C | 4.5 V | 5.5 V | 48-LQFP | In System Programmable | 15 ns | Surface Mount | 8 | 48-TQFP (7x7) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 85 °C | -40 °C | 4.5 V | 5.5 V | 48-LQFP | In System Programmable | 15 ns | Surface Mount | 8 | 48-TQFP (7x7) | 32 |
LATTICE SEMICONDUCTOR | 1000 | 70 °C | 0 °C | 4.75 V | 5.25 V | 44-TQFP | In System Programmable | 5 ns | Surface Mount | 8 | 44-TQFP (10x10) | 32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ISPLSI 2032A Series
IC CPLD 32MC 5.5NS 44TQFP
Documents
Technical documentation and resources
