9308-9113-001

Active

Radiall USA, Inc.

SMA F STR NWF

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR NWF

Technical Specifications

Parameters and characteristics for this part

Specification	9308-9113-001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Center Contact Plating	Dielectric Material	Impedance	Connector Style	Shield Termination	Contact Termination	Connector Type	Mounting Feature	Features	Mating Cycles	Number of Ports	Body Material	Center Contact Material
Radiall USA, Inc. 9308-9113-001	-65 ░C	165 °C	18 GHz	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	SMA	Solder	Solder	Female Socket Jack	Flange	Extended Insulation	500	1	Stainless Steel	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

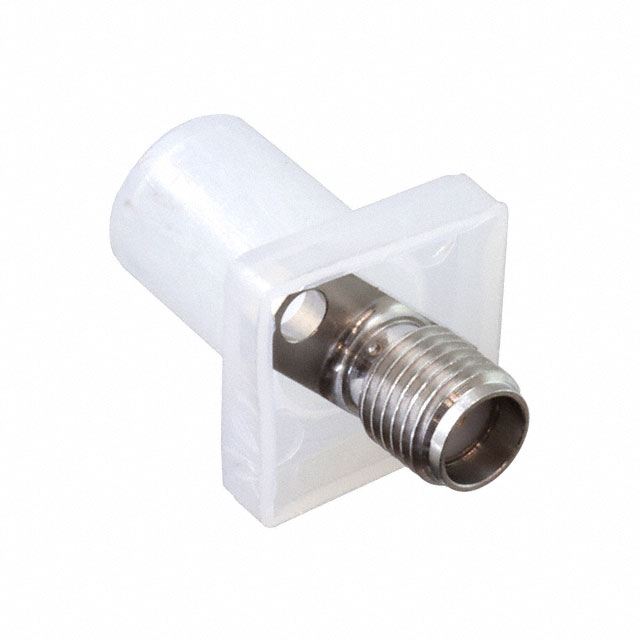

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
