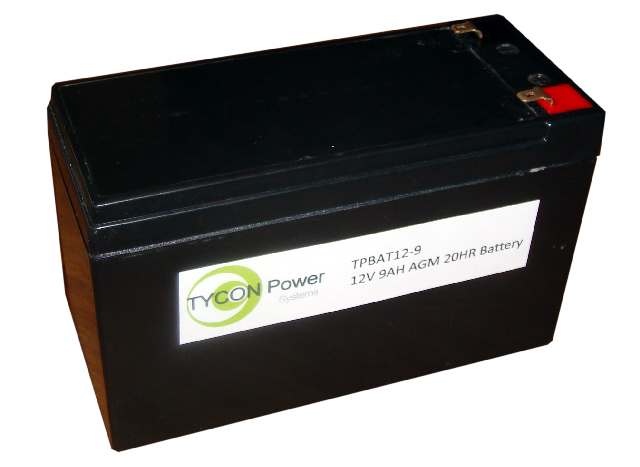

TPBAT12-9
ActiveTycon Systems Inc.
BATTERY LEAD ACID 12V 8.5AH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPBAT12-9
ActiveTycon Systems Inc.
BATTERY LEAD ACID 12V 8.5AH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPBAT12-9 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 8.5 Ah |
| Size / Dimension | 66 mm, 94 mm, 149.9 mm |
| Size / Dimension [x] | 5.9 in |
| Size / Dimension [y] | 2.6 " |
| Size / Dimension [z] | 3.7 in |
| Standard Charge Current | 2.7 A |
| Termination Style | Spade, .250" (6.3mm) |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 42.92 | |
Description
General part information
TPBAT12 Series
12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 8.5Ah
