14-3518-101
ActiveAries Electronics

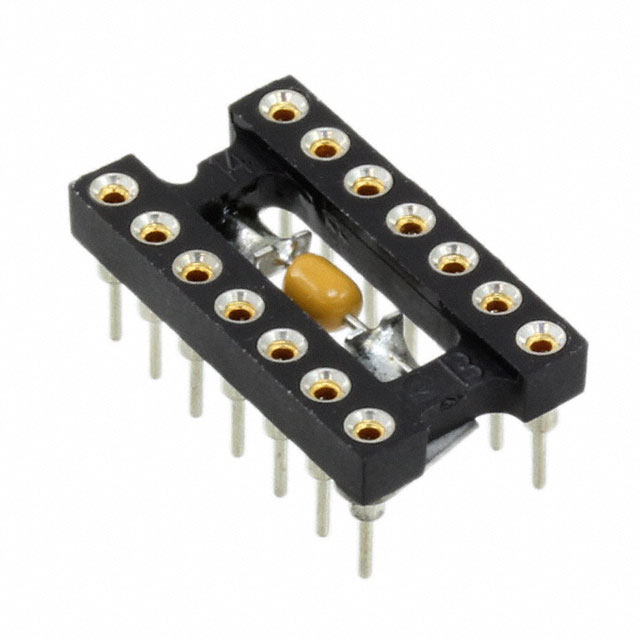

CONN IC DIP SOCKET 14POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
14-3518-101
ActiveAries Electronics
CONN IC DIP SOCKET 14POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 14-3518-101 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Glass Filled, Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 14 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
14-3518 Series
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Housing Material | Contact Material - Post [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination Post Length | Termination Post Length | Mounting Type | Features | Current Rating (Amps) | Termination | Contact Material - Mating | Type | Type | Type | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Finish - Post | Number of Positions or Pins (Grid) | Material Flammability Rating | Pitch - Post | Pitch - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Aries Electronics | 200 µin | 5.08 µm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Tin | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 10 çin | 0.25 çm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Gold | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 200 µin | 5.08 µm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Tin | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 200 µin | 5.08 µm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Tin | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 10 çin | 0.25 çm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Gold | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 200 µin | 5.08 µm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Tin | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 200 µin | 5.08 µm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Surface Mount | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Tin | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 200 µin | 5.08 µm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Tin | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 200 µin | 5.08 µm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Tin | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Aries Electronics | 200 µin | 5.08 µm | Glass Filled Nylon 4/6 Polyamide (PA46) | Brass | 10 çin | 0.25 çm | 3.18 mm | 0.125 in | Through Hole | Open Frame | 3 A | Solder | Beryllium Copper | 0.3 " | 7.62 mm | DIP | 0.1 in | 2.54 mm | Gold | Tin | 14 | UL94 V-0 | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.12 | |
| 10 | $ 3.50 | |||
| 25 | $ 3.28 | |||
| 50 | $ 3.13 | |||
| 100 | $ 2.98 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.66 | |||
| 1000 | $ 2.53 | |||
| 2500 | $ 2.37 | |||
Description
General part information
14-3518 Series
14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
