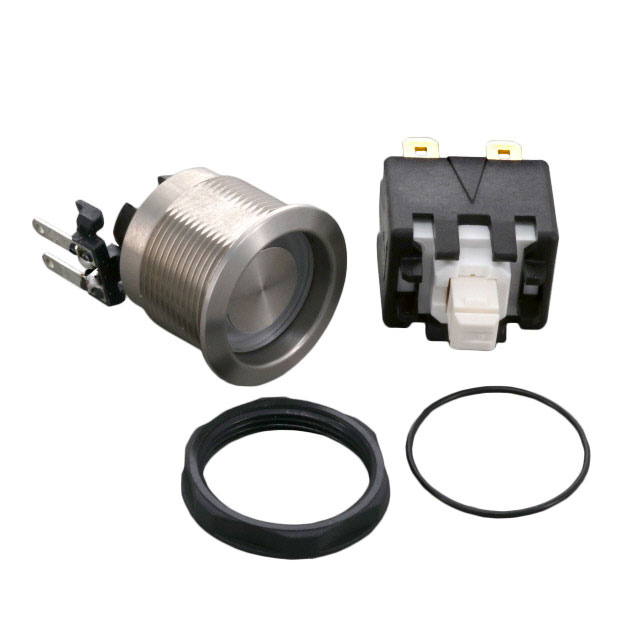

1241.6834.1124000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON DPST 12A 250V
Deep-Dive with AI
Search across all available documentation for this part.
1241.6834.1124000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON DPST 12A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241.6834.1124000 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPST |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 12 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP64 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 22.1 mm |
| Switch Function | Off-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.90 | |
| 50 | $ 43.91 | |||
Description
General part information
1241.6834 Series
Pushbutton Switch DPST Anti-Vandal, Illuminated Panel Mount, Front
