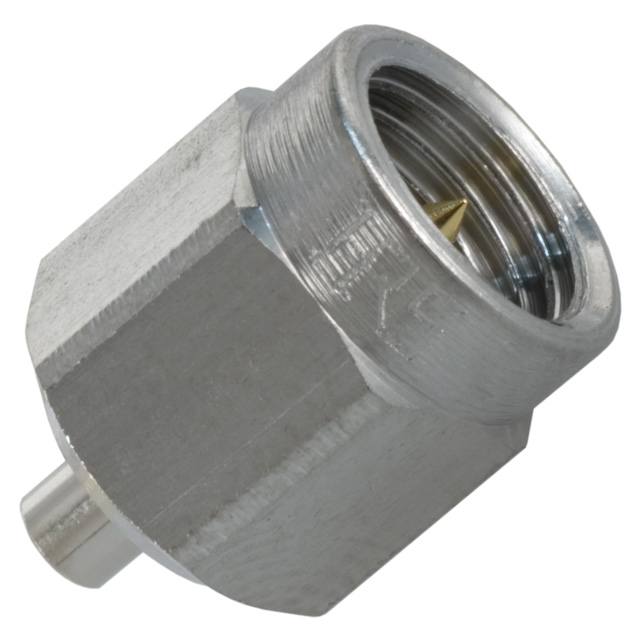

HRMP-H.FLJ(40)
ActiveHirose Electric USA, Inc.
CONN ADAPT SMA PLUG TO H.FL JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsBWA Series RF Co-Axial Connectors
HRMP-H.FLJ(40)
ActiveHirose Electric USA, Inc.
CONN ADAPT SMA PLUG TO H.FL JACK
Deep-Dive with AI
DocumentsBWA Series RF Co-Axial Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | HRMP-H.FLJ(40) |
|---|---|
| Adapter Series | SMA to H.FL |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel; Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | Male Pin, H.FL Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 3 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.39 | |
| 20 | $ 27.49 | |||
| 40 | $ 25.45 | |||
| 100 | $ 24.60 | |||
| 260 | $ 23.25 | |||
Description
General part information
HRMP-H.FL Series
Adapter Coaxial Connector SMA Plug, Male Pin To H.FL Jack, Male Pin 50 Ohms
