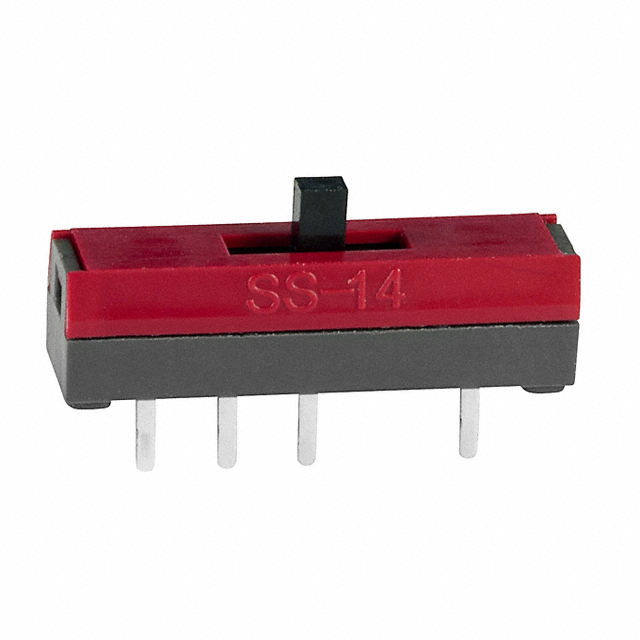

SS14MDP2

Active

NKK Switches

SLIDE SWITCH, SP3T, LATCHED, 0.1A, 30VDC, SOLDER TERMINAL, THROUGH HOLE-STRAIGHT,

Search across all available documentation for this part.

Active

NKK Switches

SLIDE SWITCH, SP3T, LATCHED, 0.1A, 30VDC, SOLDER TERMINAL, THROUGH HOLE-STRAIGHT,

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Length [x]	Actuator Type	Switch Travel	Circuit	Voltage Rating - DC	Current Rating (Amps)	Contact Timing	Termination Style	Switch Function	Actuator Material	Mounting Type	Electrical Life
NKK Switches SS14MDH2	Phosphor Bronze	Silver	-15 °C	60 °C	10000 Steps	2.5 mm	Standard	2 mm	SP3T	30 V	100 mA	Non-Shorting	PC Pin	On-On-On	Nylon Polyamide (PA)	Through Hole Right Angle	10000 Cycles
NKK Switches SS14MDP2	Phosphor Bronze	Silver	-15 °C	60 °C	10000 Steps	2 mm	Standard	2 mm	SP3T	30 V	100 mA	Non-Shorting	PC Pin	On-On-On	Nylon Polyamide (PA)	Through Hole	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SP3T Through Hole
