RP1270BF

Active

Hammond Manufacturing

BOX PC WHT 8.66"L X 5.87"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PC WHT 8.66"L X 5.87"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1270BF

Area (L x W) [custom]	328 cm˛
Area (L x W) [custom]	50.8 in˛
Color	Off, White
Container Type	Box
Design	Cover Included
Height [z]	2.17 in
Height [z]	55.12 mm
Material	Polycarbonate
Material Flammability Rating	UL94 V-2
Size / Dimension [x]	219.96 mm
Size / Dimension [x]	8.66 "
Size / Dimension [y]	5.87 in
Size / Dimension [y]	149.1 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material Flammability Rating	Thickness	Thickness	Area (L x W)	Area (L x W)	Material	Container Type	Color	Height [z]	Height [z]	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing RP1270C	UL94 V-2	2.03 mm	0.08 "	275 cm²	42.6 in²	Polycarbonate	Box	Clear Cover/Door Off White	2.17 in	55.12 mm	Cover Included
Hammond Manufacturing RP1270BF	UL94 V-2	2.03 mm	0.08 "			Polycarbonate	Box	Off White	2.17 in	55.12 mm	Cover Included	5.87 in	219.96 mm	149.1 mm	8.66 "	328 cm˛	50.8 in˛
Hammond Manufacturing RP1270BFC	UL94 V-2	2.03 mm	0.08 "			Polycarbonate	Box	Clear Cover/Door Off White	2.17 in	55.12 mm	Cover Included	5.87 in	219.96 mm	149.1 mm	8.66 "	328 cm˛	50.8 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

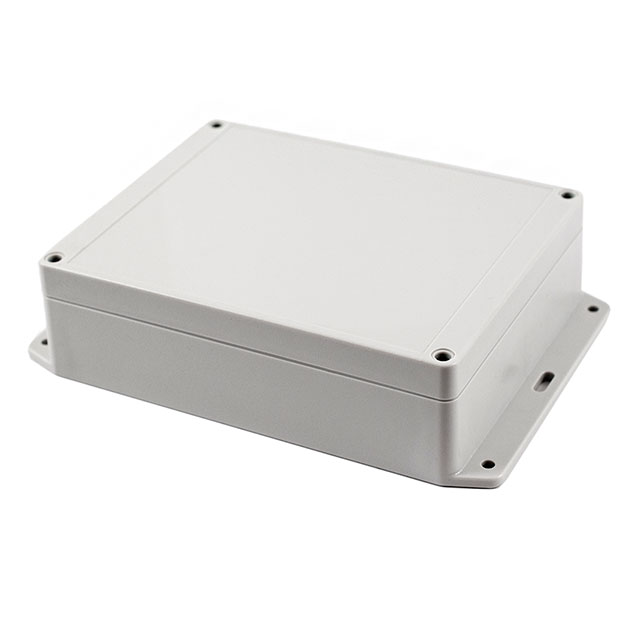

Box Polycarbonate White, Off Cover Included 8.660" L x 5.870" W (219.96mm x 149.10mm) X 2.170" (55.12mm)

Technical documentation and resources

No documents available
