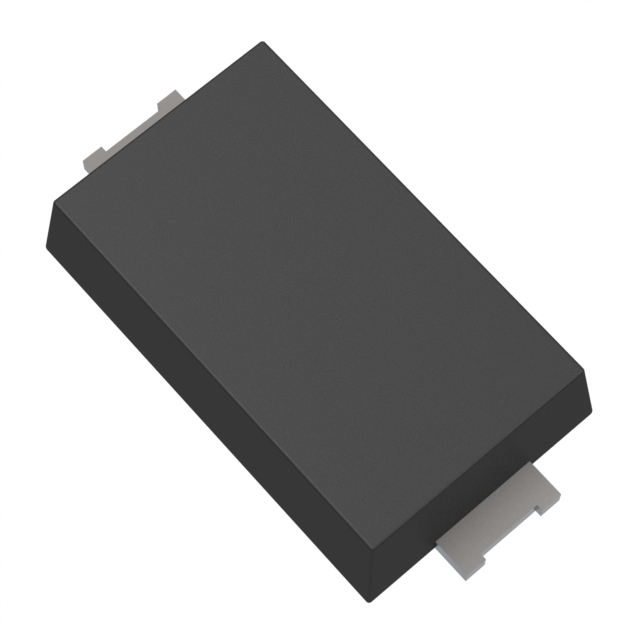

VSQS15A045-TE16L3
ActiveKyocera AVX
DIODE SCHOTTKY 45V 15A TO-277
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VSQS15A045-TE16L3
ActiveKyocera AVX
DIODE SCHOTTKY 45V 15A TO-277
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VSQS15A045-TE16L3 |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage @ Vr | 1 mA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | 3-PowerDFN, TO-277 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-277 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 540 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.78 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.78 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 3000 | $ 0.34 | ||
| 6000 | $ 0.32 | |||
| 9000 | $ 0.30 | |||
| 30000 | $ 0.29 | |||
Description
General part information
VSQS15A045 Series
Diode 45 V 15A Surface Mount TO-277
