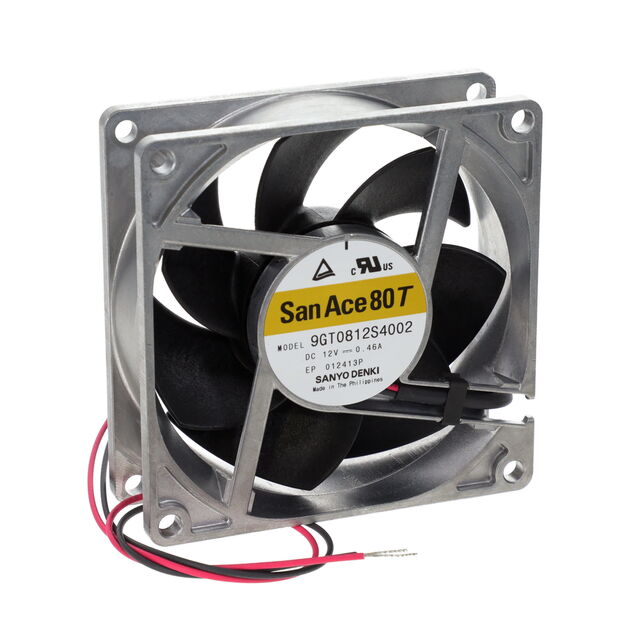

9GT0812S4002

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25.2MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25.2MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Termination	Voltage - Rated	RPM	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Approval Agency	Weight	Weight	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [x]	Bearing Type	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Noise	Material - Blade	Material - Frame	Static Pressure	Static Pressure	Features
Sanyo Denki America Inc. 9GT0812S4002	5.52 W	2 Wire Leads	12 VDC	6700 RPM	10.2 VDC	13.8 VDC	65.7 CFM	1.84 m³/min	CSA TUV UL	130.18 g	0.287 lb	40000 Hrs	-40 °C	-40 °C	85 °C	85 °C	25.2 mm	Ball	460 mA	80 mm	80 mm	Tubeaxial	46 dB(A)	Plastic	Aluminum	142 Pa	0.57 in H2O
Sanyo Denki America Inc. 9GT0812S4001	5.52 W	3 Wire Leads	12 VDC	6700 RPM	10.2 VDC	13.8 VDC	65.7 CFM	1.84 m³/min	CSA TUV UL	130.18 g	0.287 lb	40000 Hrs	-40 °C	-40 °C	85 °C	85 °C	25.2 mm	Ball	460 mA	80 mm	80 mm	Tubeaxial	46 dB(A)	Plastic	Aluminum	142 Pa	0.57 in H2O	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 65.7 CFM (1.84mł/min) 2 Wire Leads
