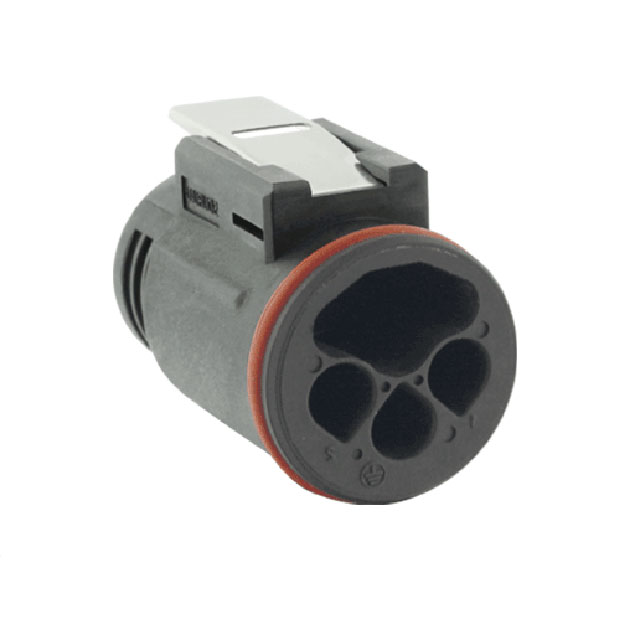

UTL6122G1W5S

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG F/M 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTL6122G1W5S

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG F/M 8POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTL6122G1W5S

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	5, 3
Contact Size	16, 20
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 5VA
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Nylon, Polyamide (PA), Glass Reinforced
Shell Size - Insert	12-2
Shielding	Unshielded
Type	For Female Sockets and Male Pins

UTL61 Series

Part	Insert Material	Ingress Protection	Contact Finish Thickness - Mating	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Type	Primary Material	Fastening Type	Features	Number of Positions	Shell Material	Contact Finish - Mating	Material Flammability Rating	Shielding	Applications	Shell Size - Insert	Color	Material	For Use With/Related Products	Accessory Type	Shell Size - Insert	Orientation	Contact Shape	Contact Type	Housing Color	Type	Contact Size	Contact Size	Note
Souriau-Sunbank by Eaton UTL6103G1P16AWG	Thermoplastic	IP67 IP68 IP69K	Flash	Free Hanging (In-Line)	Copper Alloy	-40 °C	105 ░C	Crimp	Female Sockets Male Pins Plug	Plastic	Latch Lock	Shrink Boot UV Resistant	4	Glass Filled Nylon Polyamide (PA)	Gold	UL94 5VA	Unshielded	Industrial	10-3	Black
Souriau-Sunbank by Eaton UTL6102G1W3P14AWG	Nylon Polyamide (PA)	IP67 IP68 IP69K	Flash	Free Hanging (In-Line)	Copper Alloy	-40 °C	105 ░C	Crimp	Female Sockets Male Pins Plug	Plastic	Latch Lock	Shrink Boot UV Resistant	6	Glass Filled Nylon Polyamide (PA)	Gold	UL94 5VA	Unshielded	Industrial	10-2	Black
Souriau-Sunbank by Eaton UTL610DCG												Contains Strap Dust Tight Waterproof								Black	Ethylene Propylene Terpolymer Rubber (EPDM)	UTL Series Plug	Cap (Cover) Dust	10
Souriau-Sunbank by Eaton UTL6122G1W5P	Thermoplastic	IP67 IP68 IP69K		Free Hanging (In-Line)		-40 °C	105 ░C		Plug Housing		Latch Lock		8	Glass Reinforced Nylon Polyamide (PA)		UL94 5VA	Unshielded		12-2						Keyed	Circular	Crimp	Black	For Female Sockets and Male Pins	3 5	16 20	Contacts Not Included
Souriau-Sunbank by Eaton UTL6103G1P	Thermoplastic	IP67 IP68 IP69K		Free Hanging (In-Line)		-40 °C	105 ░C		Plug Housing		Latch Lock		4	Glass Reinforced Nylon Polyamide (PA)		UL94 5VA	Unshielded		10-3						Keyed	Circular	Crimp	Black	For Female Sockets and Male Pins		16	Contacts Not Included
Souriau-Sunbank by Eaton UTL6122G1W5S	Thermoplastic	IP67 IP68 IP69K		Free Hanging (In-Line)		-40 °C	105 ░C		Plug Housing		Latch Lock		8	Glass Reinforced Nylon Polyamide (PA)		UL94 5VA	Unshielded		12-2						Keyed	Circular	Crimp	Black	For Female Sockets and Male Pins	3 5	16 20	Contacts Not Included
Souriau-Sunbank by Eaton UTL612DCG												Contains Strap with Ring Dust Tight Waterproof								Black	Elastomer	UTL Series Plug	Cap (Cover) Dust	12
Souriau-Sunbank by Eaton UTL6145S	Nylon Polyamide (PA)	IP68 IP69K		Free Hanging (In-Line)		-40 °C	105 ░C		Plug Housing		Latch Lock		5			UL94 V-0	Unshielded		14-5						Keyed	Circular	Crimp	Black	For Female Sockets		16	Contacts Not Included
Souriau-Sunbank by Eaton UTL6103G1P20AWG	Thermoplastic	IP67 IP68 IP69K	Flash	Free Hanging (In-Line)	Copper Alloy	-40 °C	105 ░C	Crimp	Female Sockets Male Pins Plug	Plastic	Latch Lock	Shrink Boot UV Resistant	4	Glass Filled Nylon Polyamide (PA)	Gold	UL94 5VA	Unshielded	Industrial	10-3	Black
Souriau-Sunbank by Eaton UTL6102G1W3S16AWG	Nylon Polyamide (PA)	IP67 IP68 IP69K	Flash	Free Hanging (In-Line)	Copper Alloy	-40 °C	105 ░C	Crimp	Female Sockets Male Pins Plug	Plastic	Latch Lock	Shrink Boot UV Resistant	6	Glass Filled Nylon Polyamide (PA)	Gold	UL94 5VA	Unshielded	Industrial	10-2	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.30

Description

General part information

UTL61 Series

8 (5 + 2 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line)
