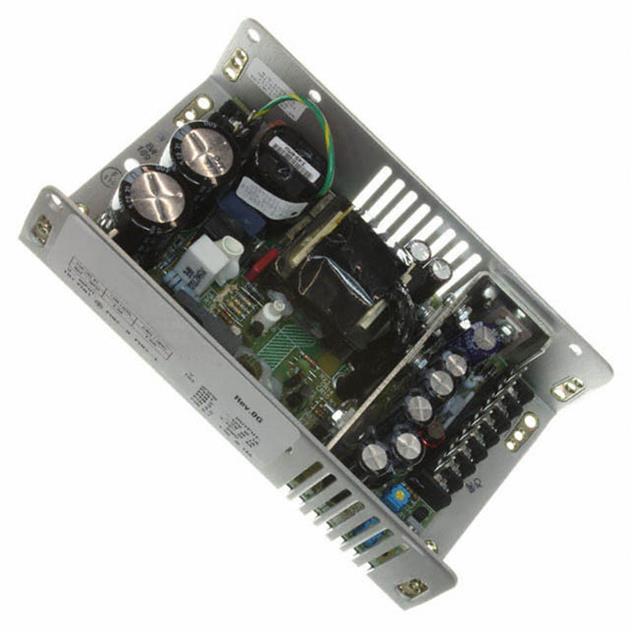

MAP80-4000G

Active

EOS Power India Private Ltd

AC/DC CNVRTR 5V 12V -5V -12V 80W

Deep-Dive with AI

Search across all available documentation for this part.

MAP80-4000G

Active

EOS Power India Private Ltd

AC/DC CNVRTR 5V 12V -5V -12V 80W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MAP80-4000G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	16 A
Current - Output 4	1 A
Efficiency	80 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	80 W
Size / Dimension [x]	182.9 mm
Size / Dimension [x]	7.2 in
Size / Dimension [y]	4.2 "
Size / Dimension [y]	106.7 mm
Size / Dimension [z]	45.7 mm
Size / Dimension [z]	1.8 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	2.6 kV
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-5 V

MAP80 Series

Part	Voltage - Isolation	Efficiency	Voltage - Output 4	Voltage - Output 2	Type	Applications	Current - Output 4	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Features	Mounting Type	Number of Outputs	Current - Output 1	Voltage - Output 3	Operating Temperature [Max]	Current - Output 2	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
EOS Power India Private Ltd MAP80-4004G	2.6 kV	80 %	15 V	24 V	Open Frame	ITE (Commercial)	1 A	CE	90 VAC	264 VAC	5 V	Adjustable Output Universal Input	Chassis Mount	4	14 A	-15 V	70 °C	2 A	80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd MAP80-4003	2.6 kV	80 %	-15 V	15 V	Open Frame	ITE (Commercial)	1 A	CE	90 VAC	264 VAC	5 V	Adjustable Output Universal Input	Chassis Mount	4	14 A	-5 V	70 °C	4 A	80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd MAP80-1024	2.6 kV	80 %			Open Frame	ITE (Commercial)		CE	90 VAC	264 VAC	24 V	Adjustable Output Universal Input	Chassis Mount	1	3.8 A		70 °C		80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd MAP80-4004	2.6 kV	80 %	15 V	24 V	Open Frame	ITE (Commercial)	1 A	CE	90 VAC	264 VAC	5 V	Adjustable Output Universal Input	Chassis Mount	4	14 A	-15 V	70 °C	2 A	80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd MAP80-4000G	2.6 kV	80 %		12 V	Open Frame	ITE (Commercial)	1 A	CE	90 VAC	264 VAC	5 V	Adjustable Output Universal Input	Chassis Mount	4	16 A	-5 V	70 °C		80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd MAP80-1012G	2.6 kV	80 %			Open Frame	ITE (Commercial)		CE	90 VAC	264 VAC	12 V	Adjustable Output Universal Input	Chassis Mount	1			70 °C		80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd (MAP80-4000)	2.6 kV	80 %		12 V	Open Frame	ITE (Commercial)	1 A	CE	90 VAC	264 VAC	5 V	Adjustable Output Universal Input	Chassis Mount	4	16 A	-5 V	70 °C		80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd (MAP80-4002)	2.6 kV	80 %	12 V	12 V	Open Frame	ITE (Commercial)	1 A	CE	90 VAC	264 VAC	5 V	Adjustable Output Universal Input	Chassis Mount	4	14 A	-12 V	70 °C	4 A	80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd MAP80-4010G	2.6 kV	80 %		12 V	Open Frame	ITE (Commercial)	3 A	CE	90 VAC	264 VAC	5 V	Adjustable Output Universal Input	Chassis Mount	4	14 A	-5 V	70 °C	4 A	80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in
EOS Power India Private Ltd (MAP80-4001)	2.6 kV	80 %	12 V	24 V	Open Frame	ITE (Commercial)	1 A	CE	90 VAC	264 VAC	5 V	Adjustable Output Universal Input	Chassis Mount	4	14 A	-12 V	70 °C	2 A	80 W	45.7 mm	4.2 "	1.8 "	106.7 mm	182.9 mm	7.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 358.75
		20	$ 336.33

Description

General part information

MAP80 Series

Open Frame AC DC Converters 4 Output 5V 12V -5V -12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
