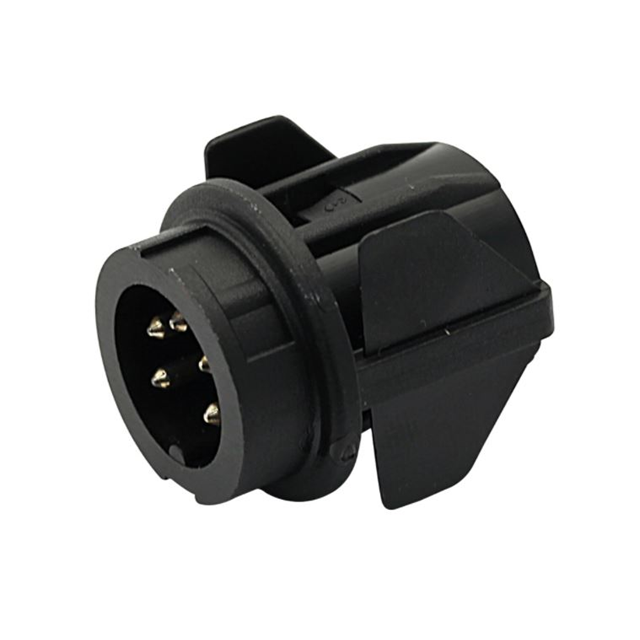

T 3426 500
ActiveAmphenol Tuchel Industrial
CONN RCPT MALE 6POS SILVER SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T 3426 500
ActiveAmphenol Tuchel Industrial
CONN RCPT MALE 6POS SILVER SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T 3426 500 |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 7 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 6 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Plastic |
| Shell Size - Insert | M16-6 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 5.68 | |
Description
General part information
T 3426 Series
6 Position Circular Connector Receptacle, Male Pins Solder
